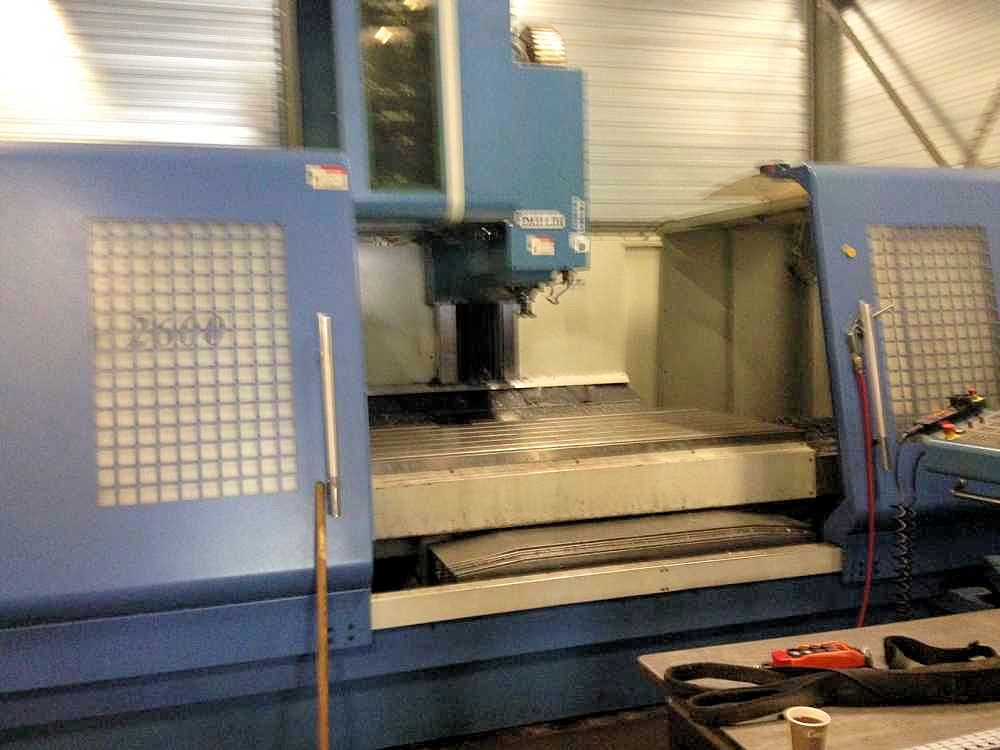

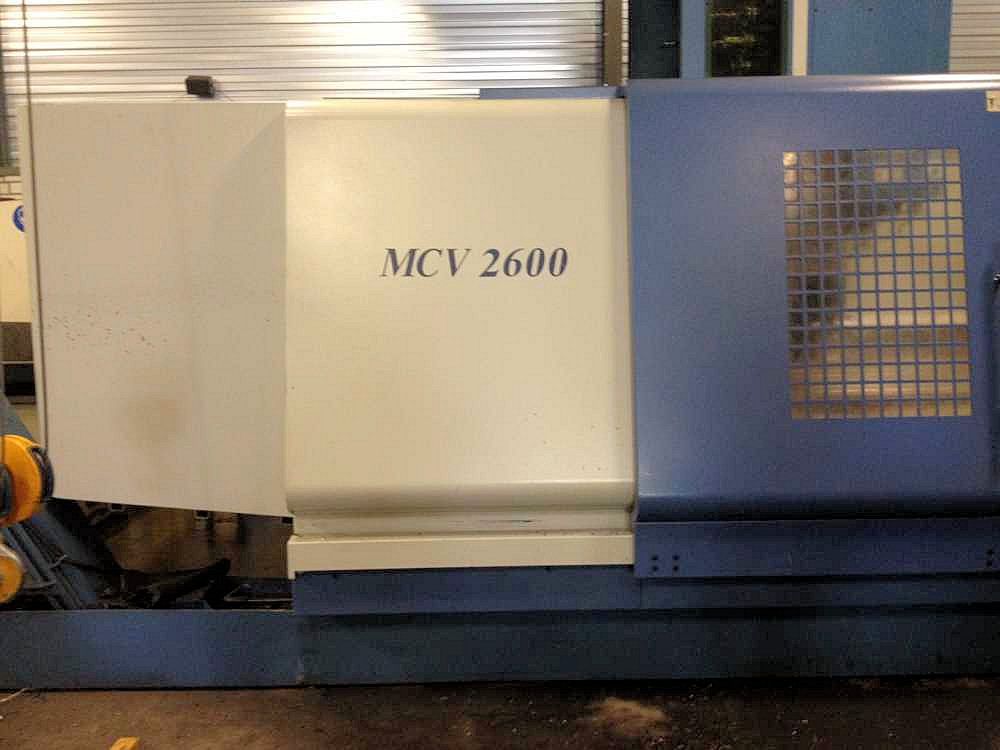

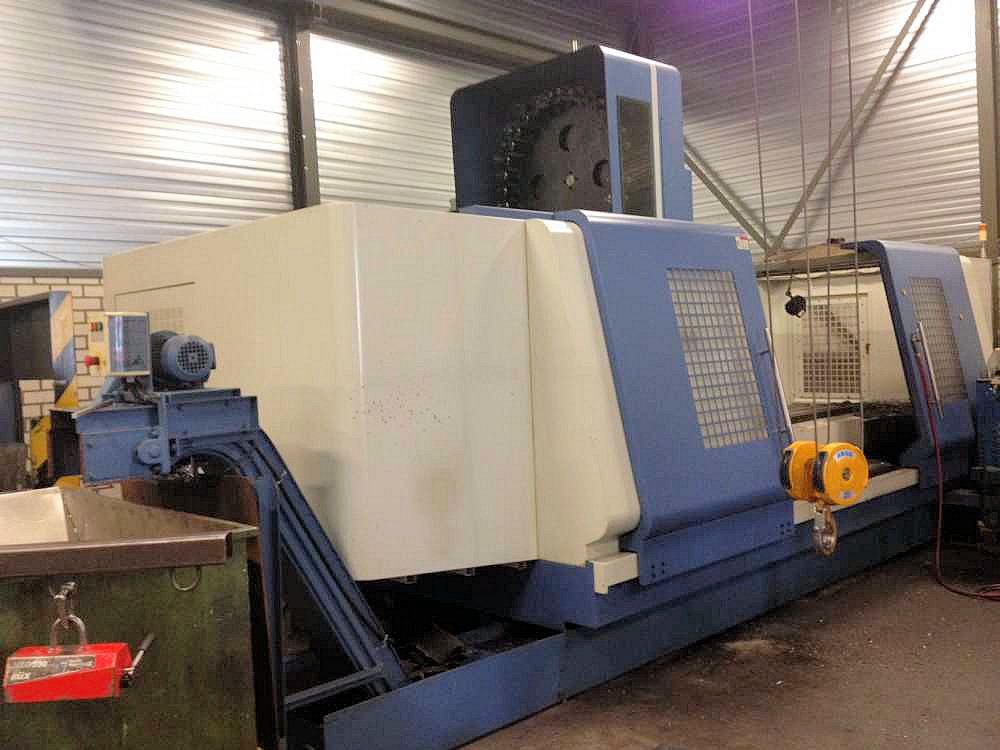

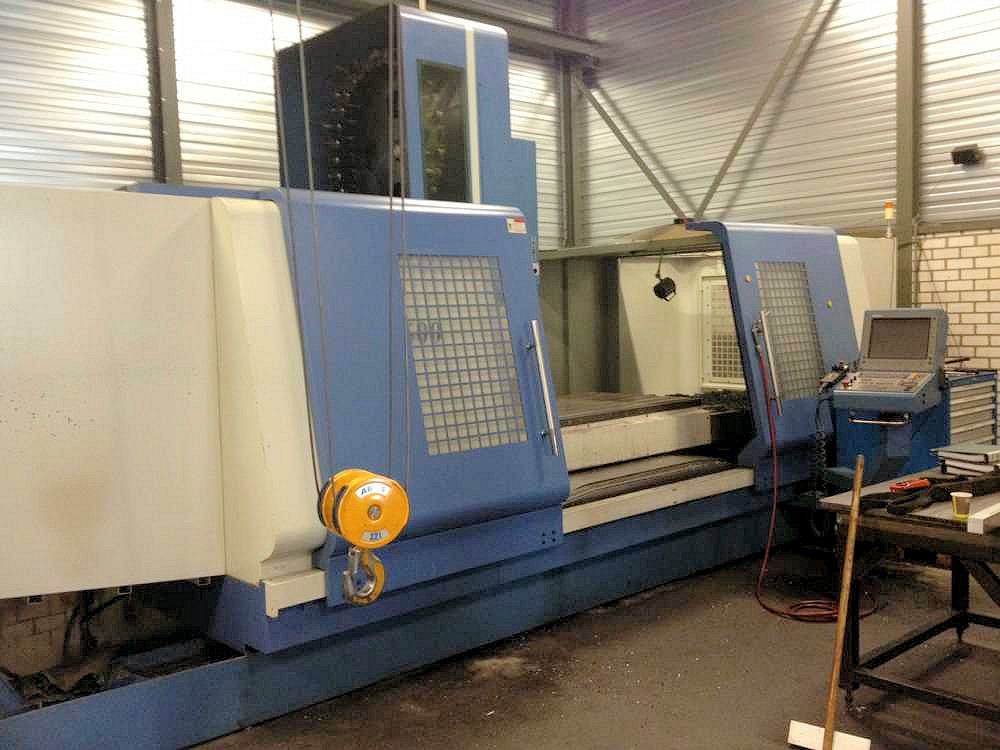

| Dah Lih MCV 2600 |  |

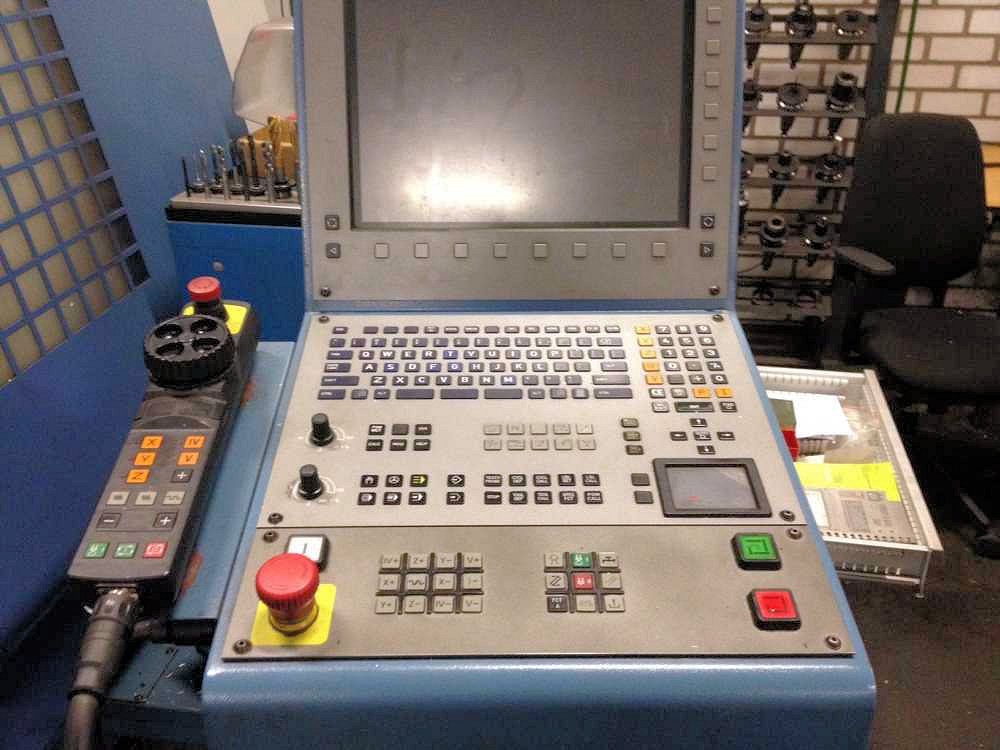

| | | | | | | Year: | | 2006 | | Make: | | Dah Lih | | Model: | | MCV 2600 | | Min - Max Height Under Spindle : | | 960 - 200mm | | Machine Weight: | | 19000kg | | Machine Dimensions L x D x H: | | 8600 x 4694 | | Table Size: | | 2800 x 970mm | | Traverses XYZ: | | 2600 x 870 x 760mm | | Spindle Taper: | | ISO50 | | Spindle Speed: | | 4500rpm (2 Gears) | | Spindle Motor Power: | | 18.5kW | | Rapid Feedrates: | | 10m/minute | | Control: | | Heidenhain TNC530 | | Tool Change Capacity: | | 32 Station | | Feedrate: | | 10m/minute | | Maximum Workpiece Size: | | 3000kg | | Tool Size: | | BT50 | | Maximum Spindle Centre to Column: | | 850mm | | Description: | | Through Spindle Coolant, Swarf conveyor, Interlocked guards, Low Volt Light, Gearbox |
| | This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.) |
|
|
