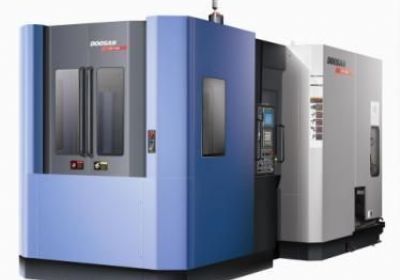

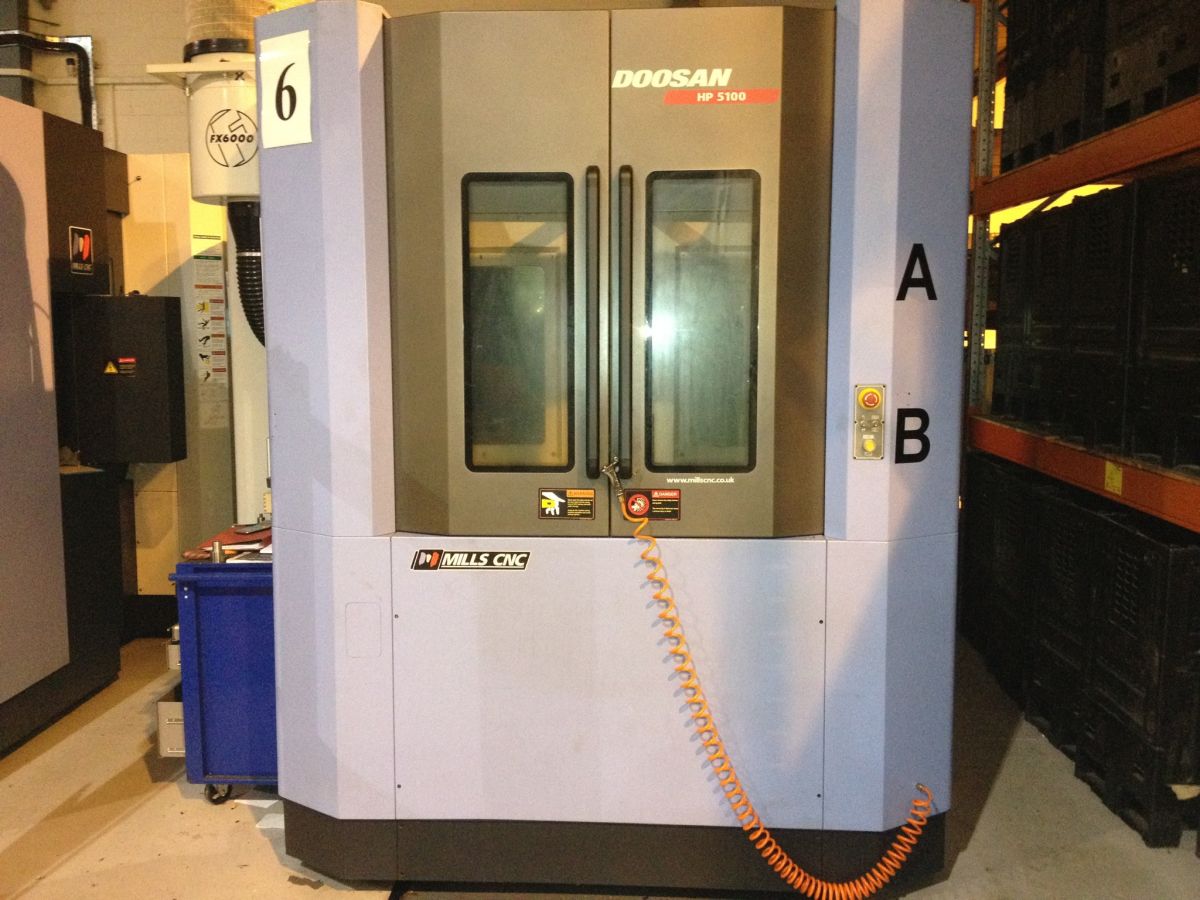

| Doosan HP5100 |  |
| | | | | | | Year: | | 2008 | | Make: | | Doosan | | Model: | | HP5100 | | Machine Weight: | | 12500kg | | Machine Dimensions L x D x H: | | 2700mm x 5600mm | | Traverses XYZ: | | 850 x 700 x 750mm | | Spindle Taper: | | BT40 | | Spindle Speed: | | 14,000 rpm | | Rapid Feedrates: | | 60m / min | | Control: | | Fanuc 31i With Conversational COntrol | | Tool Change Capacity: | | 120 Position | | Additional Equipment: | | Laser Tool Setter, 48 tool offsets, Hi Speed Look Ahead | | B axis Movement: | | 0.001 degree | | Pallet Size: | | 500mm x 500mm | | Tool Size: | | BT40 | | Main Motor: | | 22kw (Inline Spindle) | | Additional Information: | | Machine first installed March 2010. | | Description: | | Through Spindle Coolant, Tool setter, 360 Degree Rotary Table, B axis |
| | This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.) |
|
|
