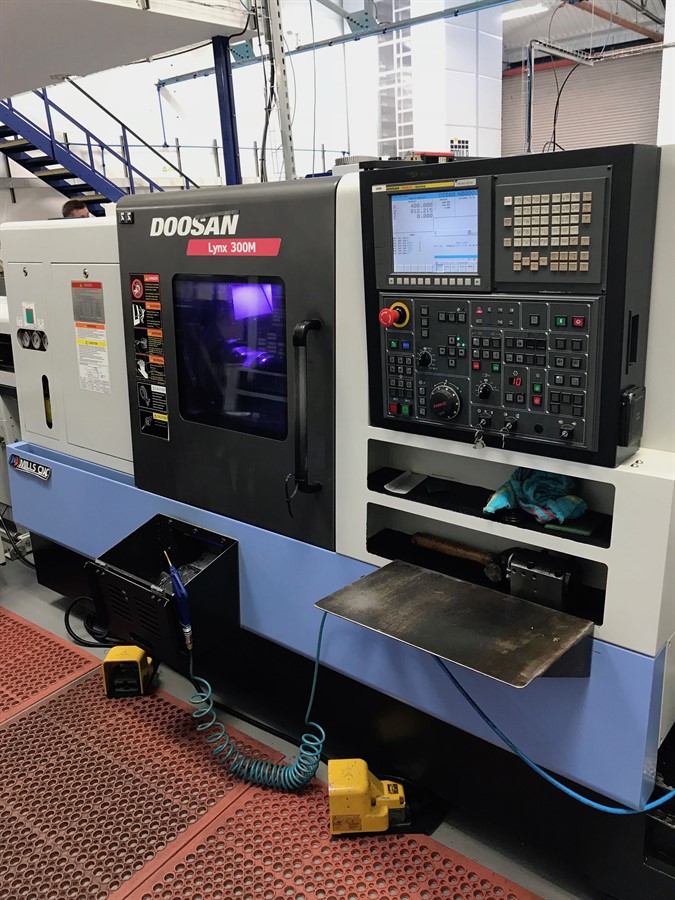

Doosan Lynx 300M

Doosan Lynx 300M

£0.00



Year:		2014
Make:		Doosan
Model:		Lynx 300M
Bar Capacity:		76mm
C axis:		0.001 degree
Chuck Size:		250mm
Control:		Doosan FANUC i
Machine Dimensions L x D x H:		3035 x 1785 x 1715mm
Machine Weight:		4050kg
Maximum Cutting diameter:		370mm
Maximum Cutting Length:		712mm
Milling RPM:		5000rpm @ 5.5kW
Rapid Feedrates:		X x Z: 24 x 30m/minute
Spindle Motor Power:		15kW
Spindle Nose:		A2-8
Spindle Speed:		3500rpm
Swing:		651mm
Swing over the Cross-slide:		461mm
Tailstock Quill Stroke:		120mm
Tailstock Taper:		MT #4
Tool Change Capacity:		12 Station
Description:		C axis & Milling, Tool setter, Coolant, Tailstock, Interlocked guards, Low Volt Light, Magazine Barfeed, Collet Chuck, Parts Catcher, Manuals, Tooling, Swarf Conveyor
