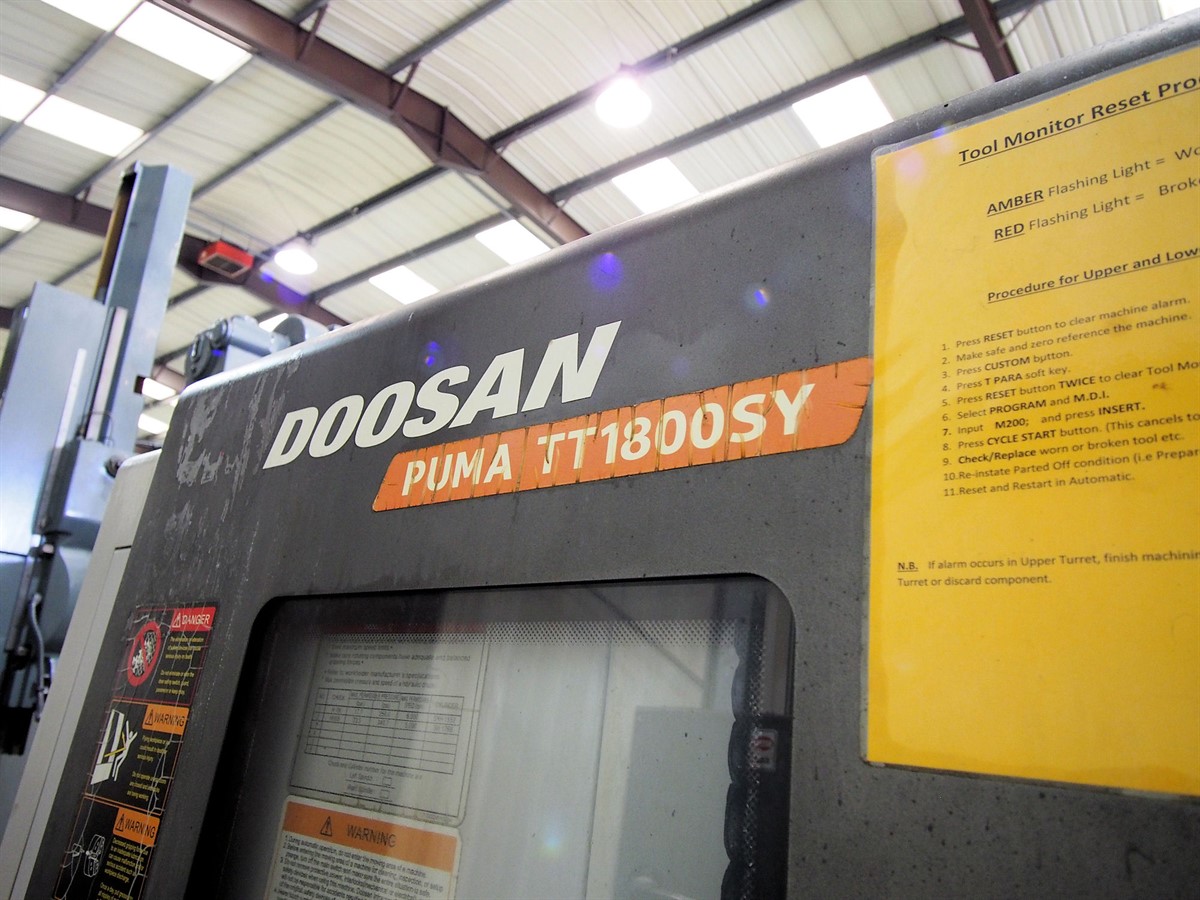

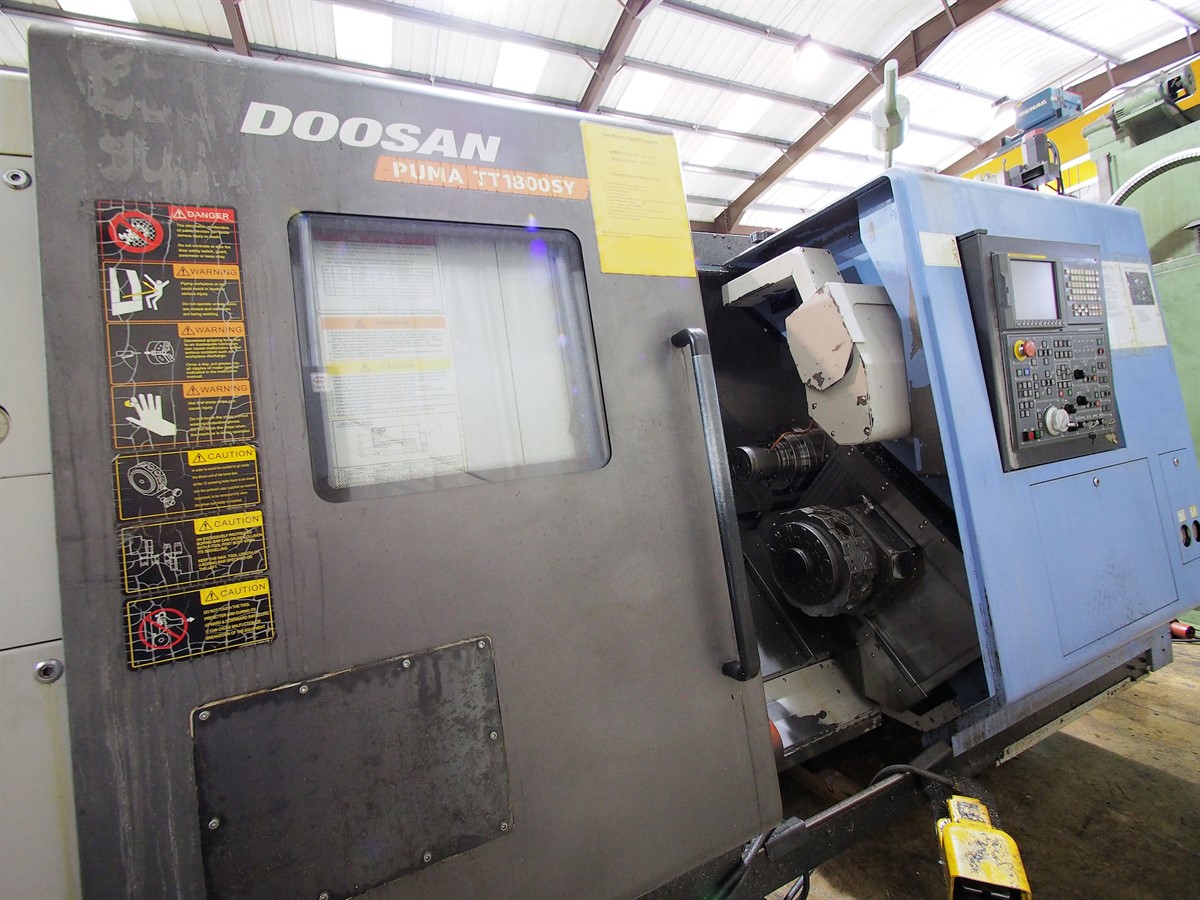

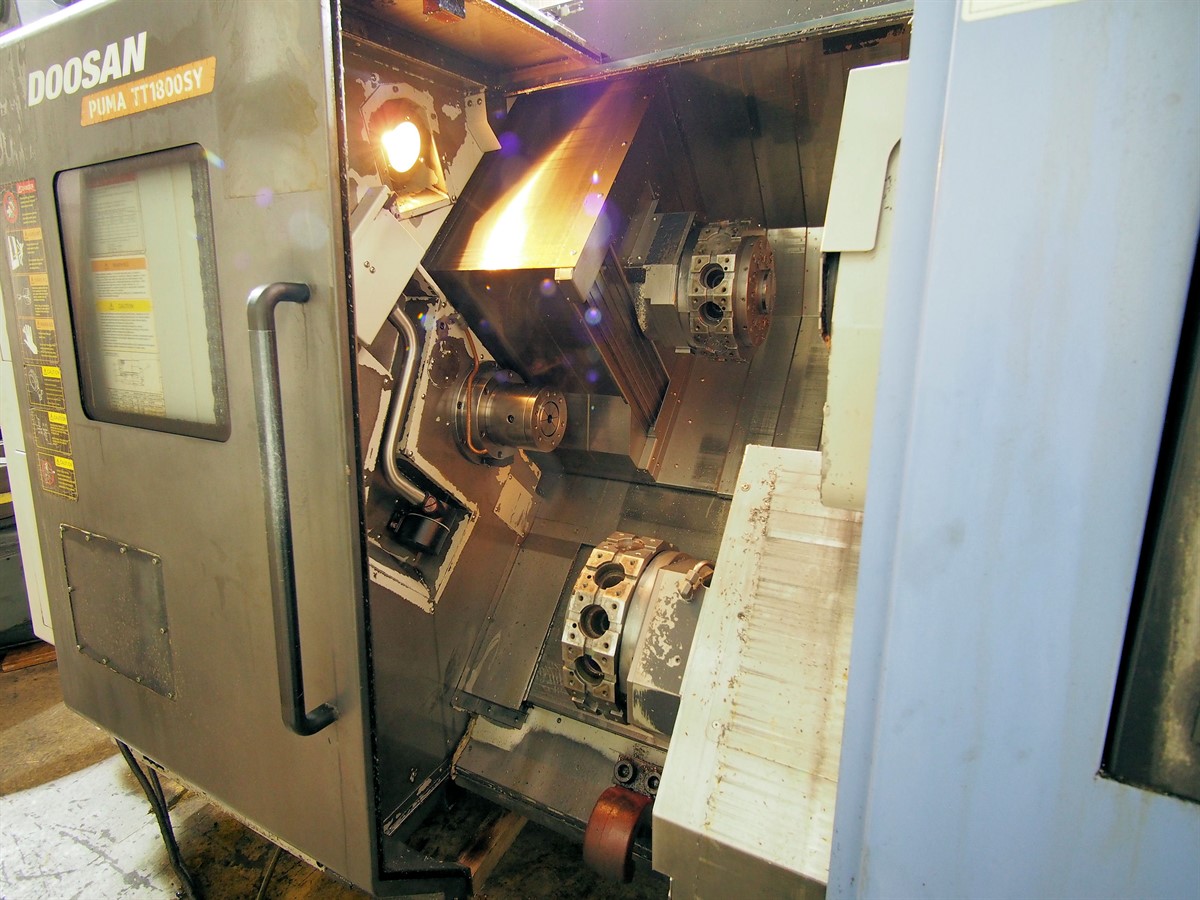

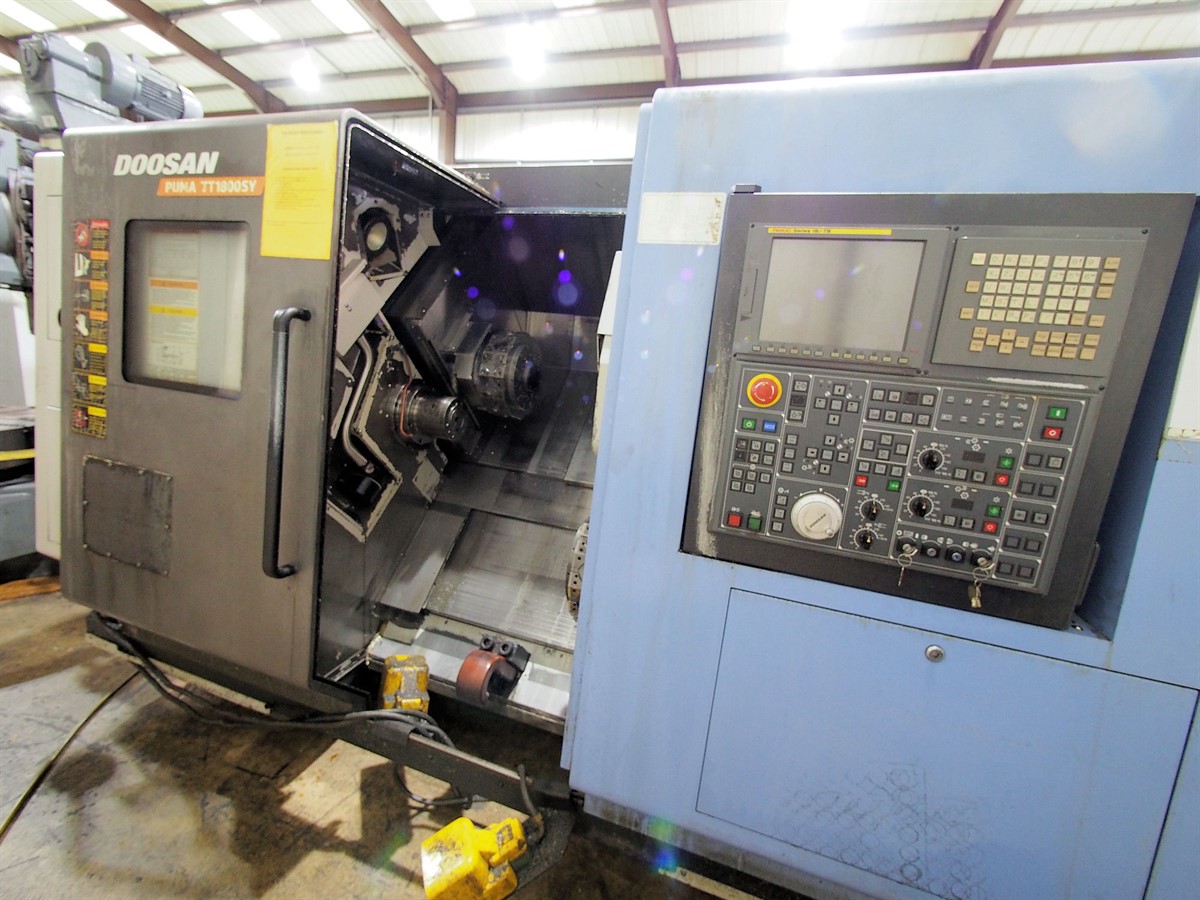

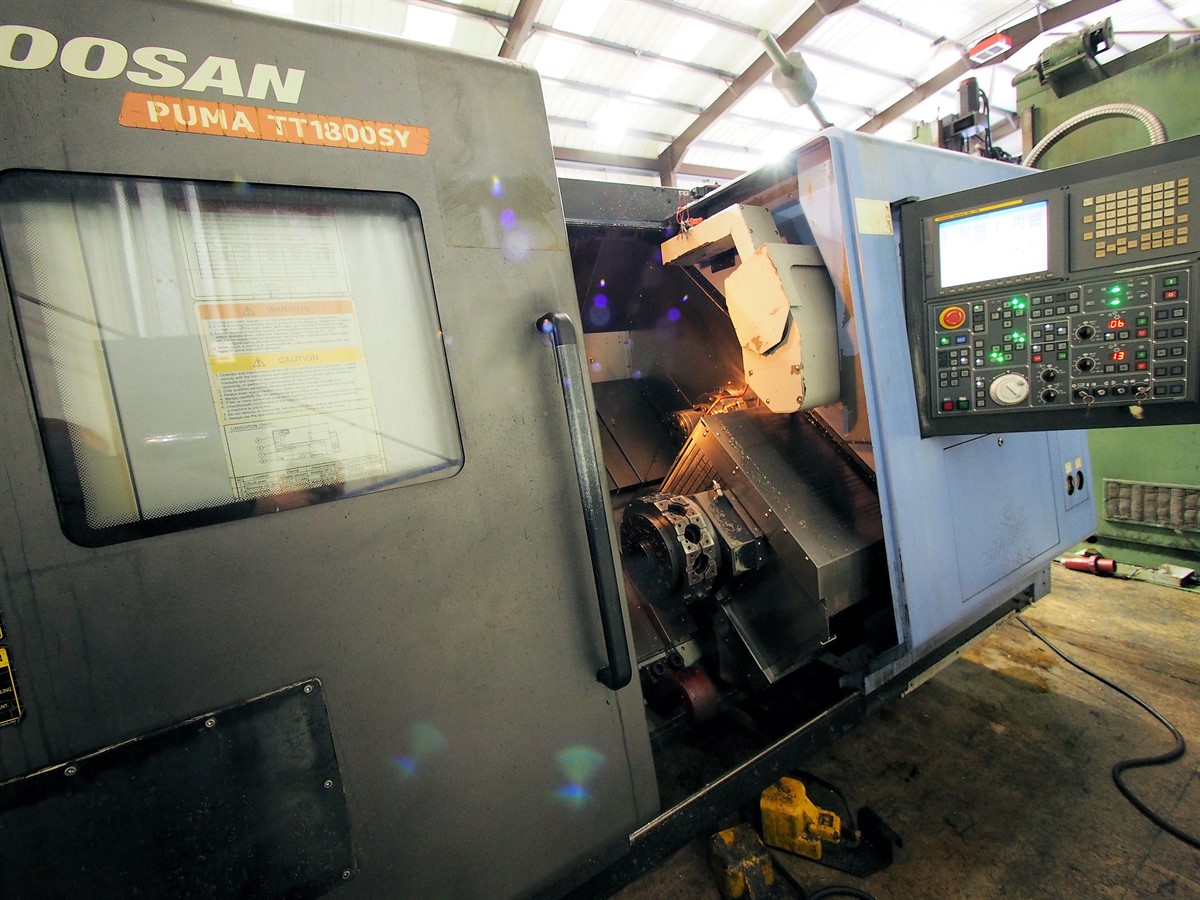

Doosan Puma TT1800SY

Doosan Puma TT1800SY

£65000.00



Year:		2007
Make:		Doosan
Model:		Puma TT1800 Y
Spindle Speed:		5000rpm
Spindle Motor Power:		22kw
Rapid Feedrates:		X x Z: 20 x 40m/minute
Swing:		230mm
Bar Capacity:		65mm

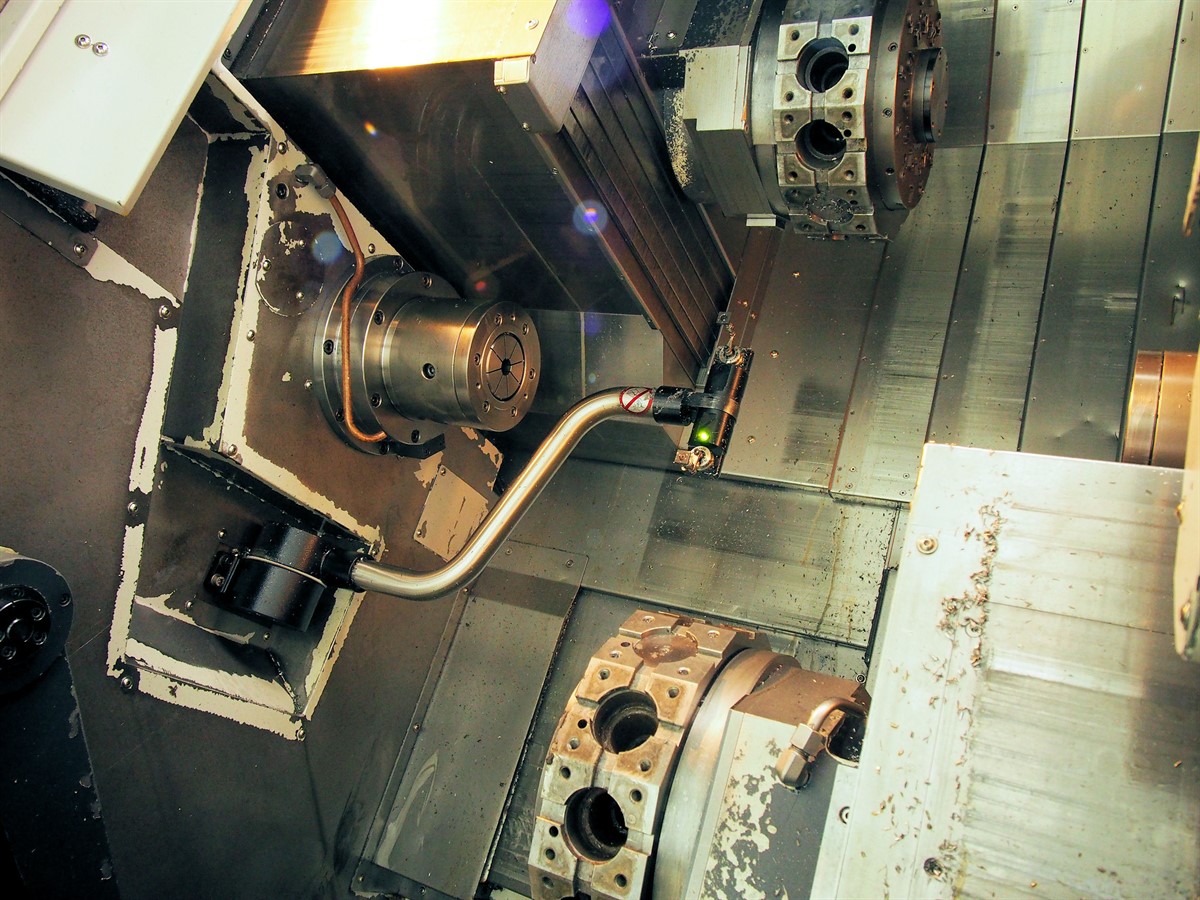

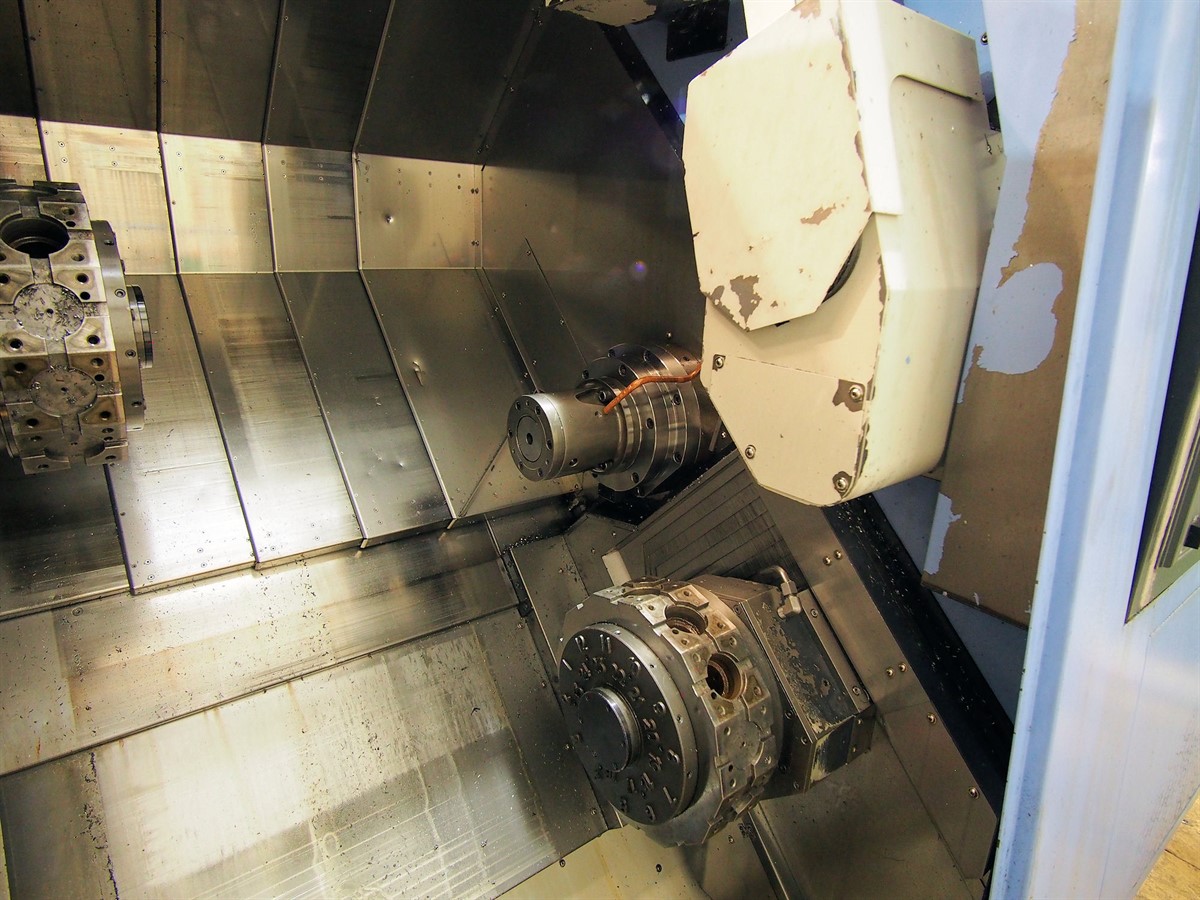

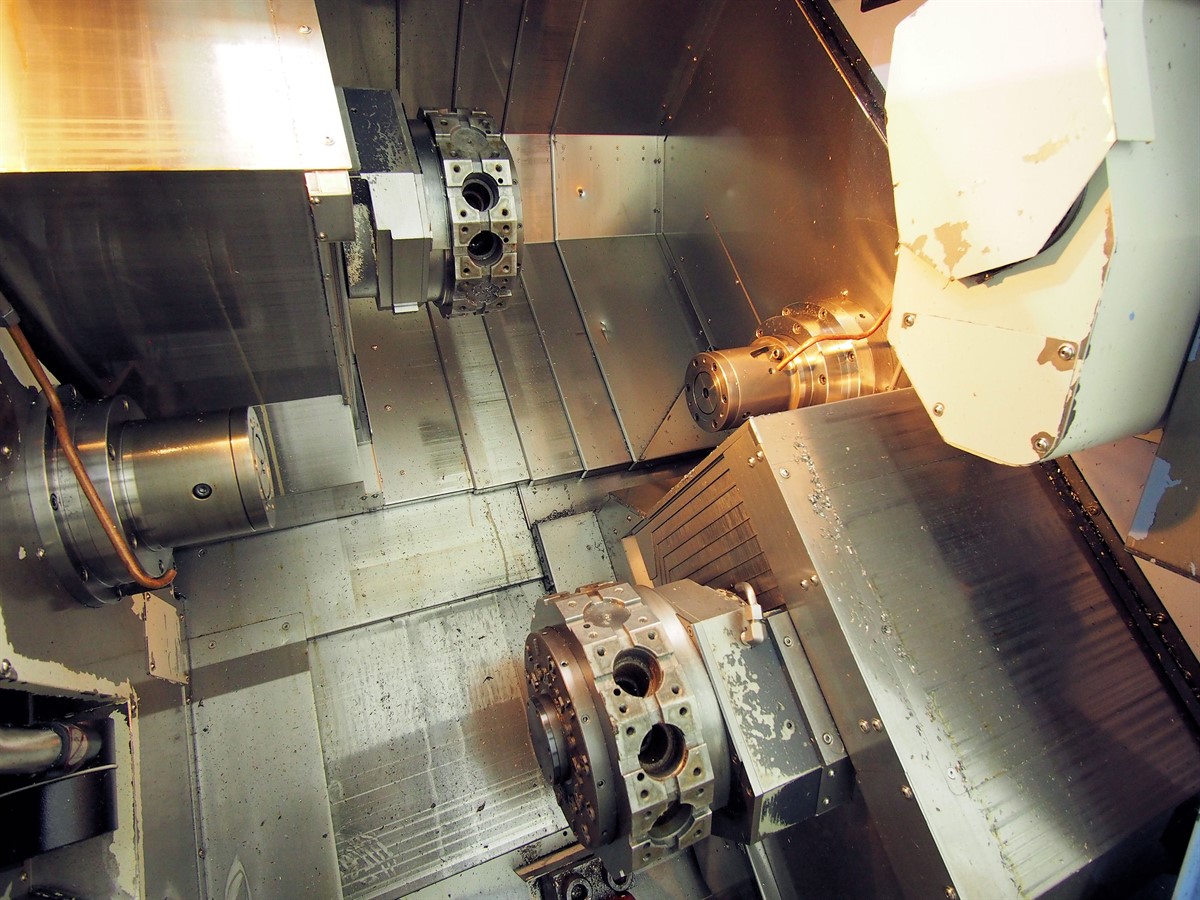

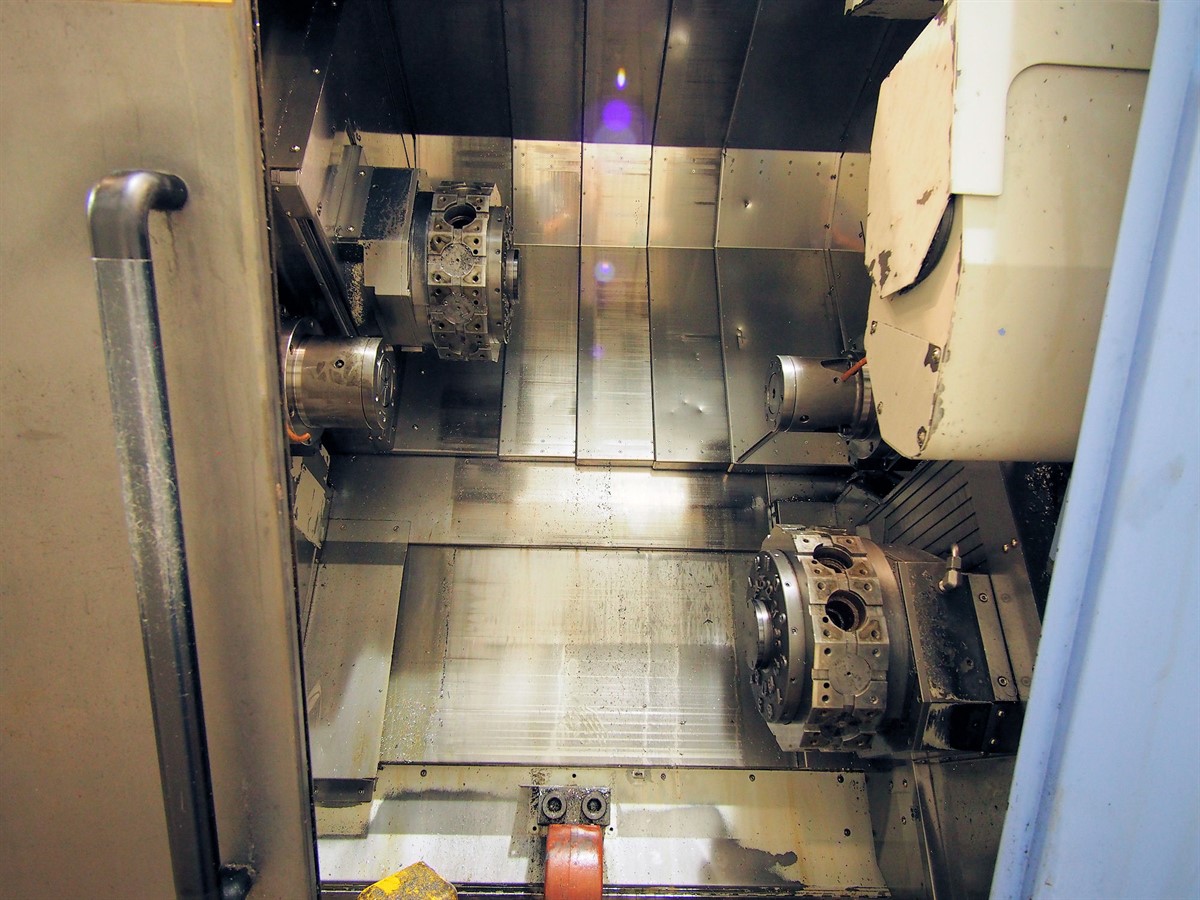

Turret Positions:		12+12
Sub Spindle Motor Power:		15Kw
Additional Equipment:		3000mm Iemca Magazine Barfeed
Y Axis Travel:		± 50mm
C axis:		0.001 degree

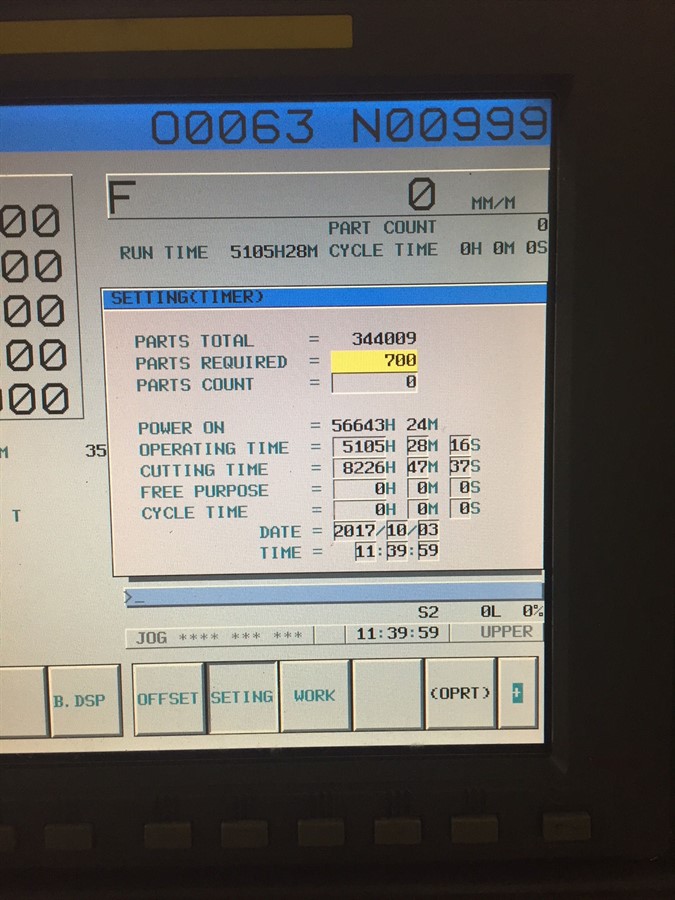

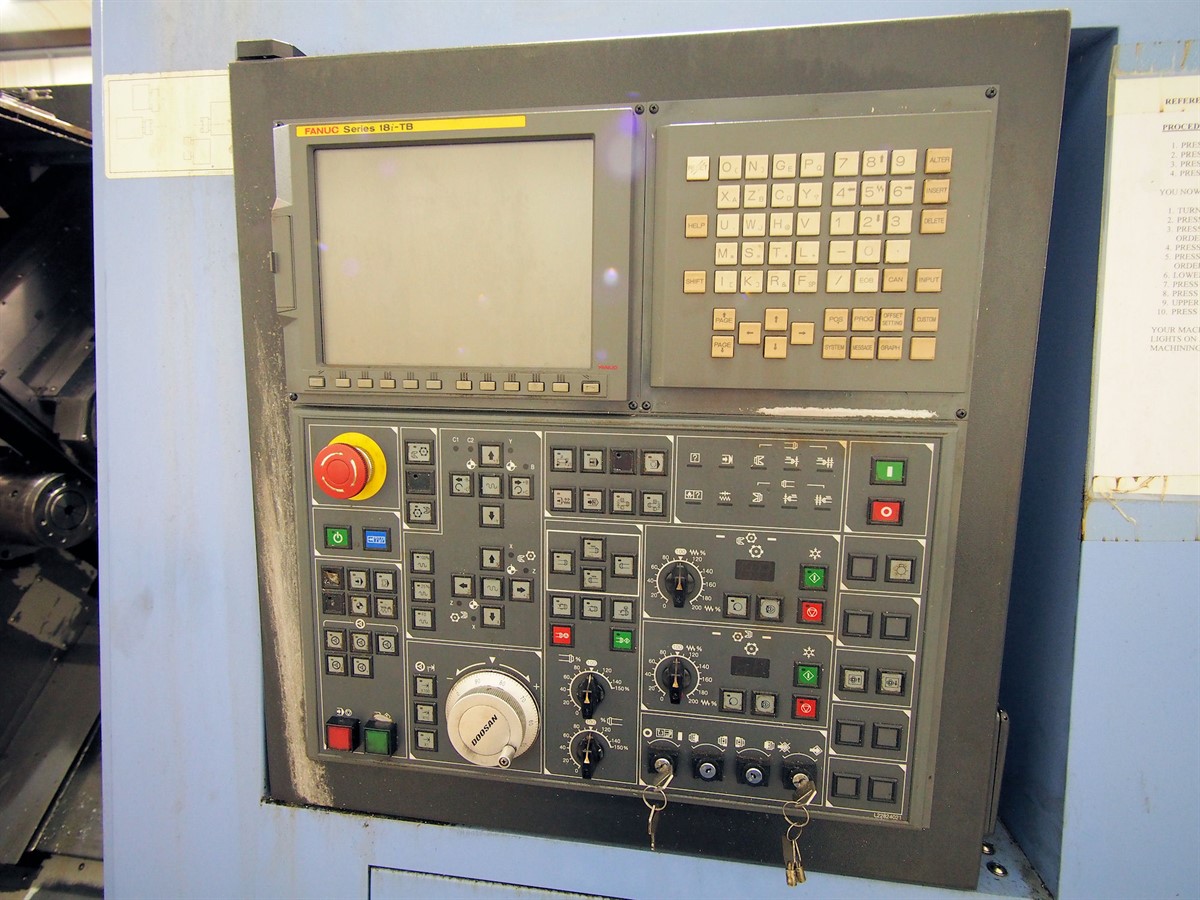

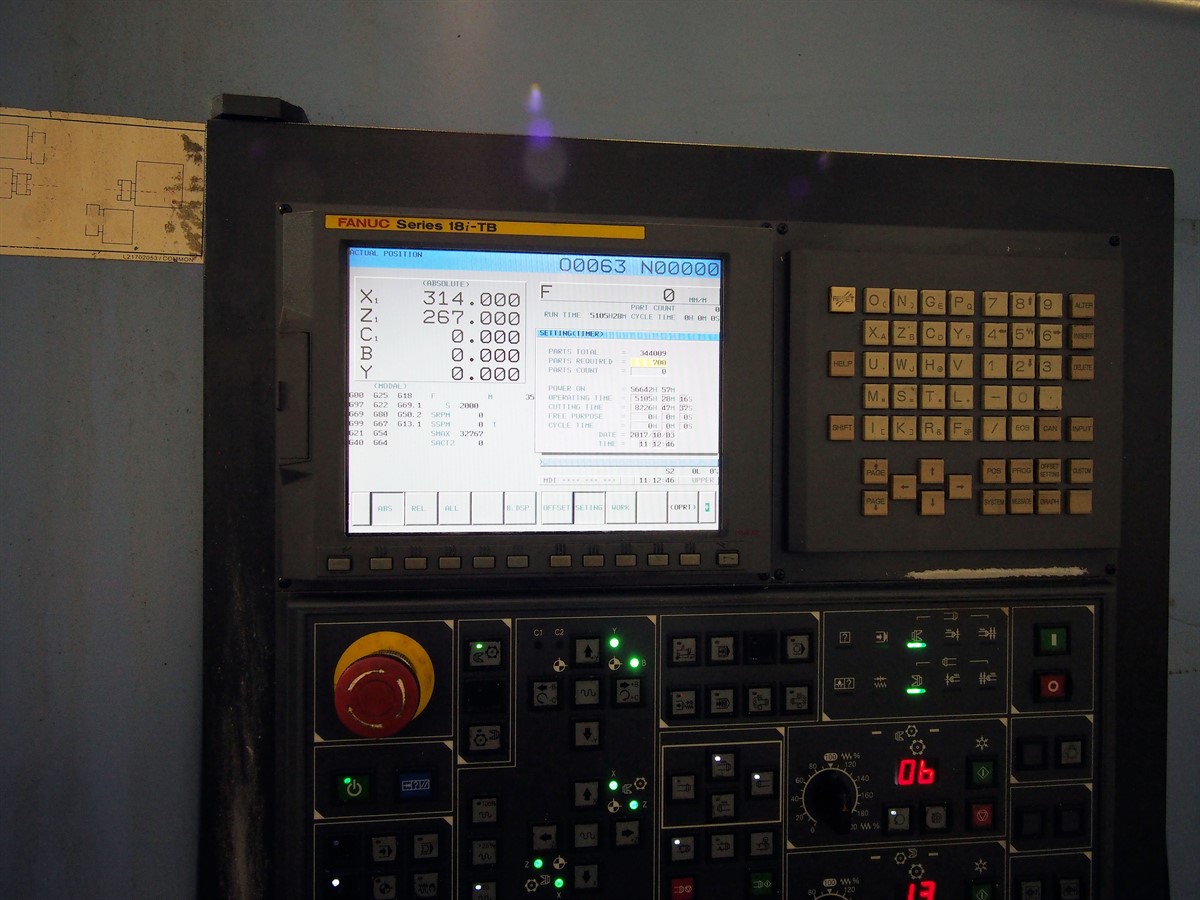

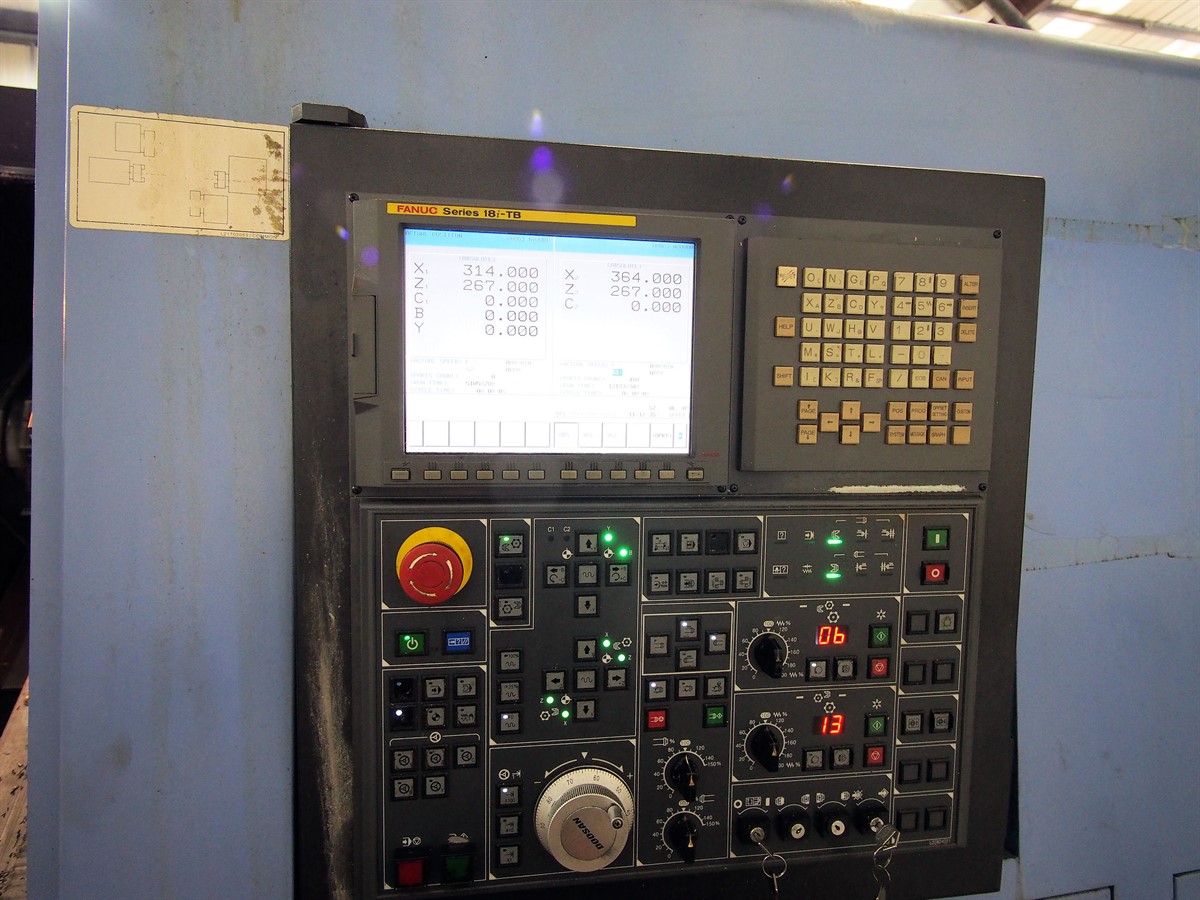

Control:		FANUC 18i
Machine Dimensions L x D x H:		3905 x 2070 x 2080mm
Machine Weight:		8800kg
Maximum Cutting diameter:		230mm
Maximum Cutting Length:		230mm
Milling RPM:		5000rpm @5.5kW
Description:		C axis & Milling, Tool setter, Coolant, Y-Axis, Interlocked guards, Low Volt Light, Magazine Barfeed, Collet Chuck, Parts Catcher, Manuals, C Axis (0.001deg) on Sub Spindle, Twin Turret, Swarf Conveyor, Sub Spindle
