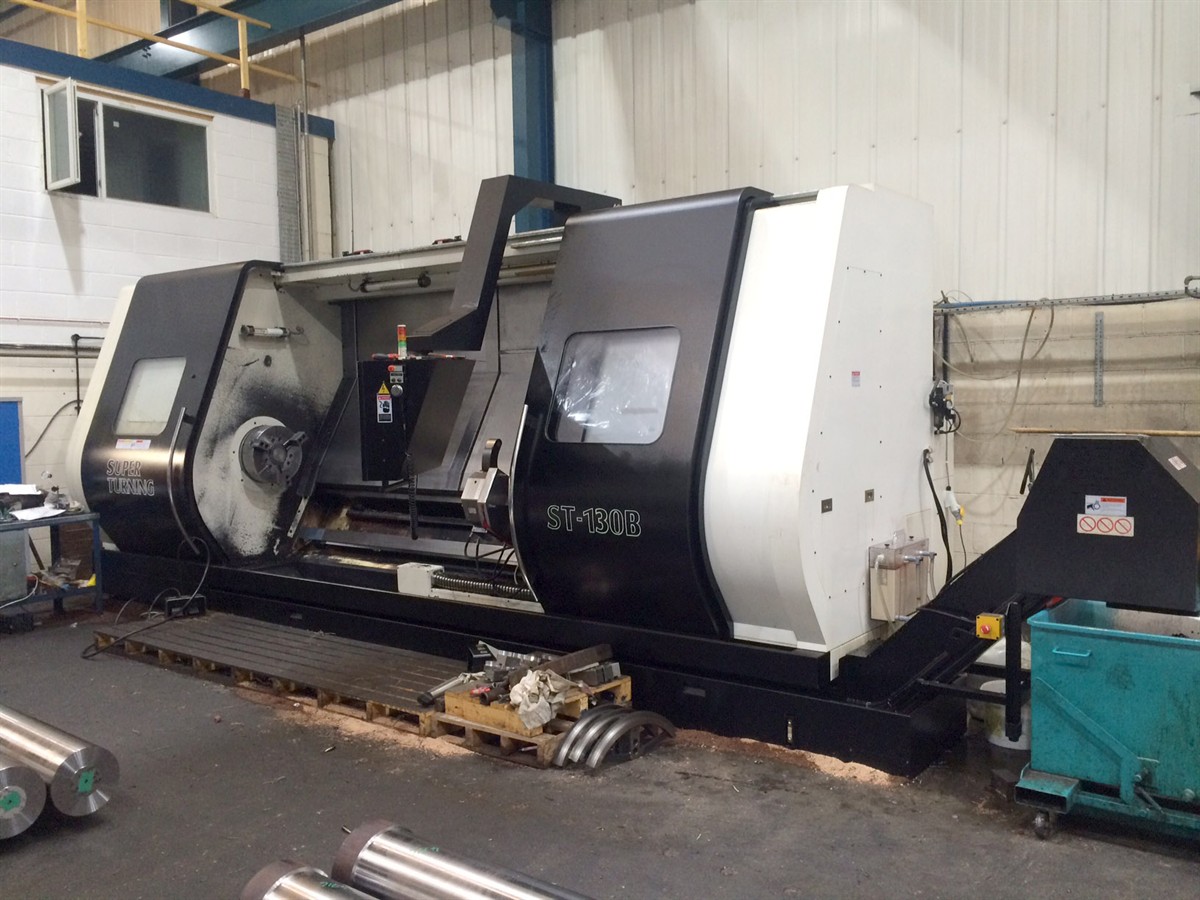

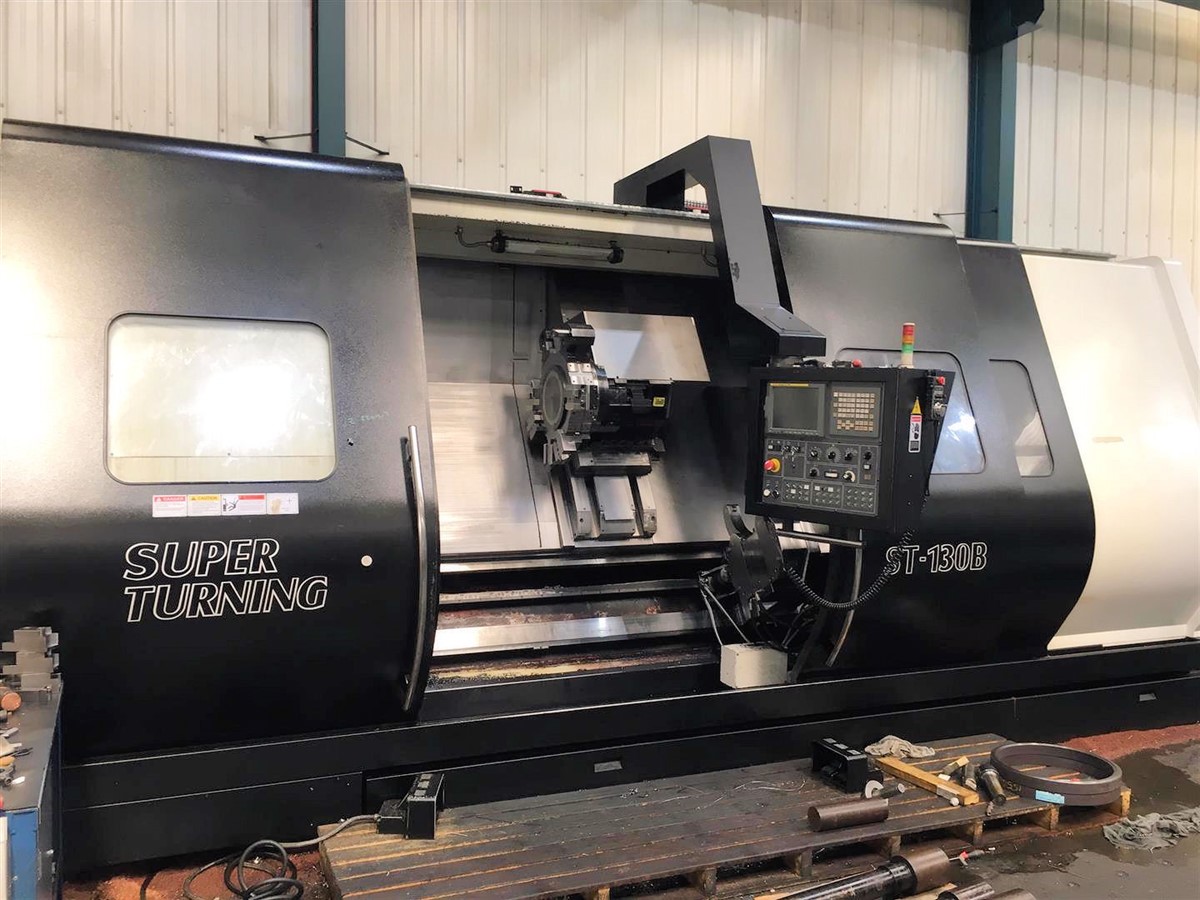

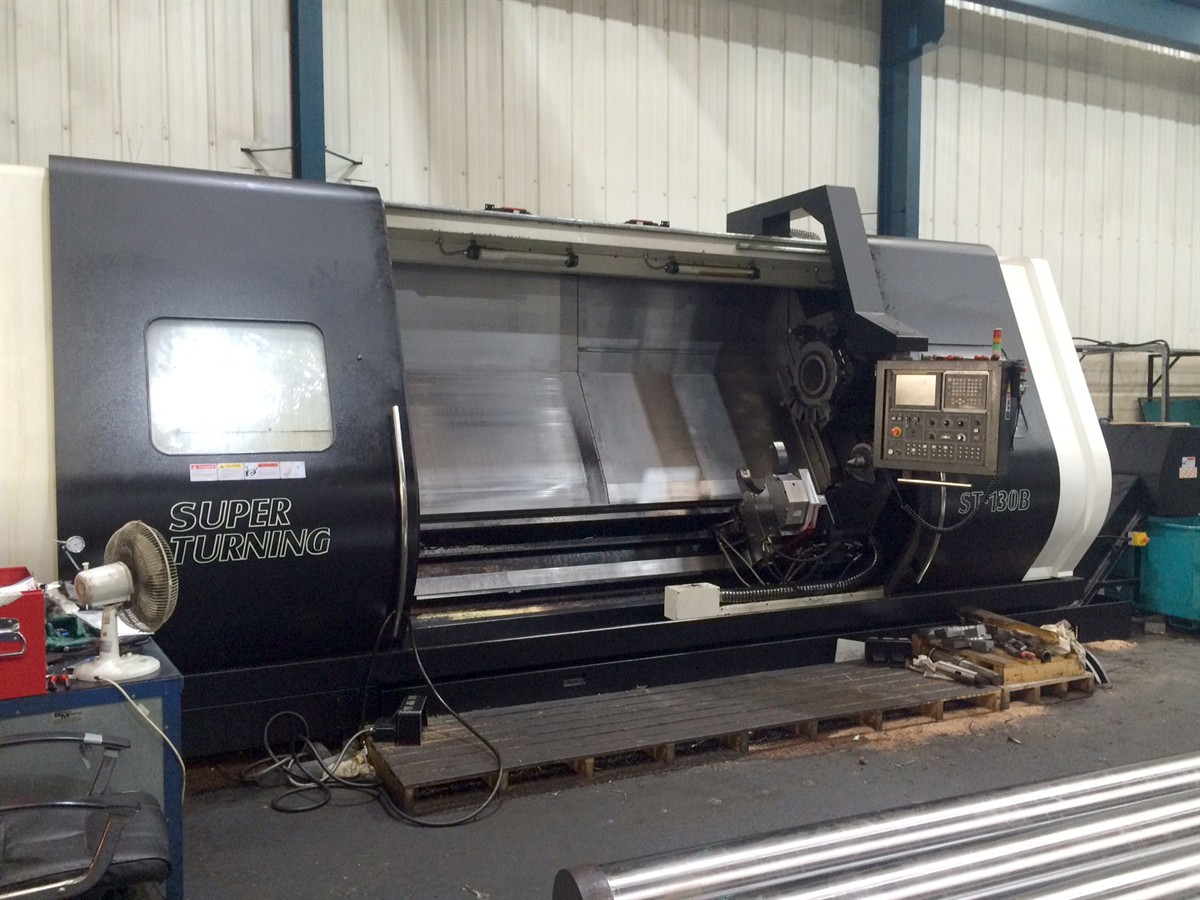

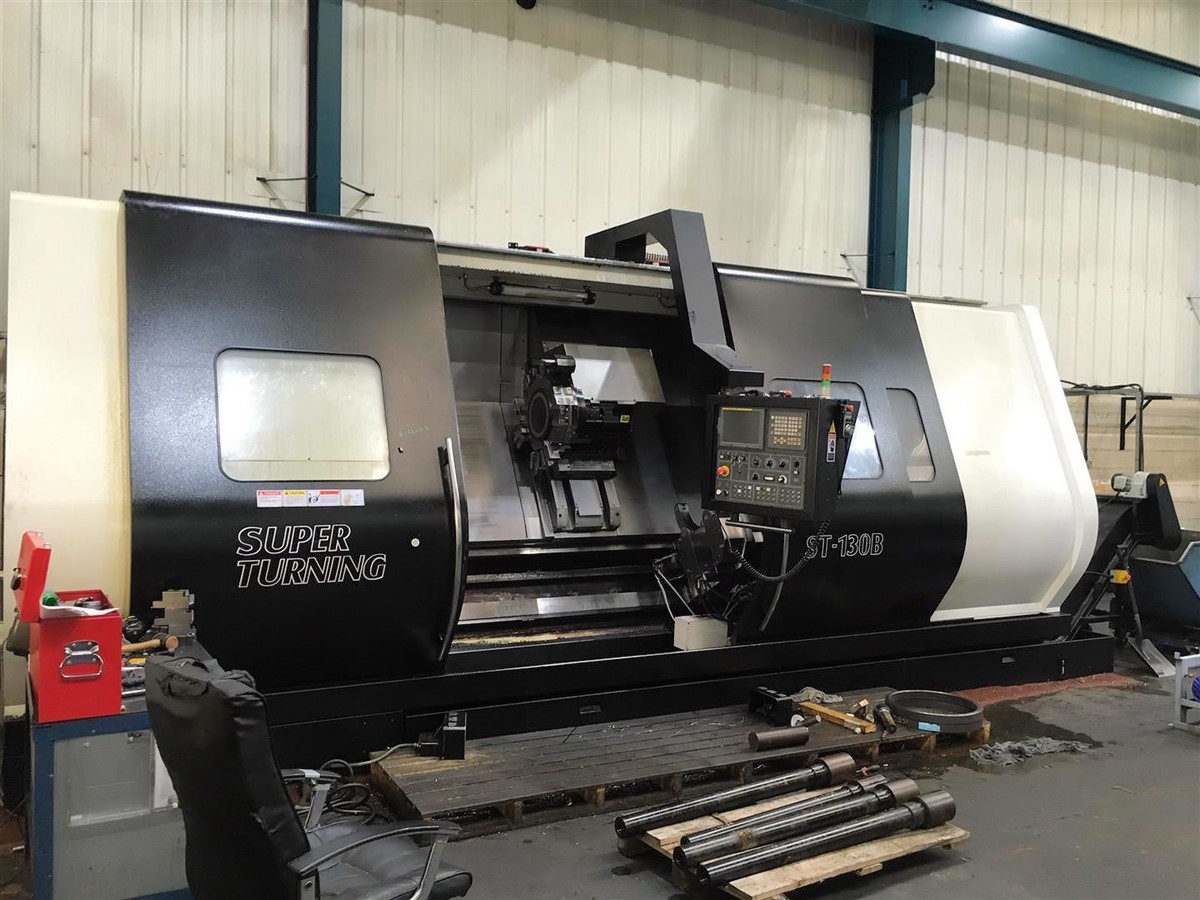

Johnford ST-130B

Johnford ST-130B

£85000.00



Year:		2012
Make:		Johnford
Model:		ST-130B
Spindle Speed:		2000rpm
Swing:		920mm
Chuck Size:		18"
Bar Capacity:		116mm
Swing over the Cross-slide:		700mm

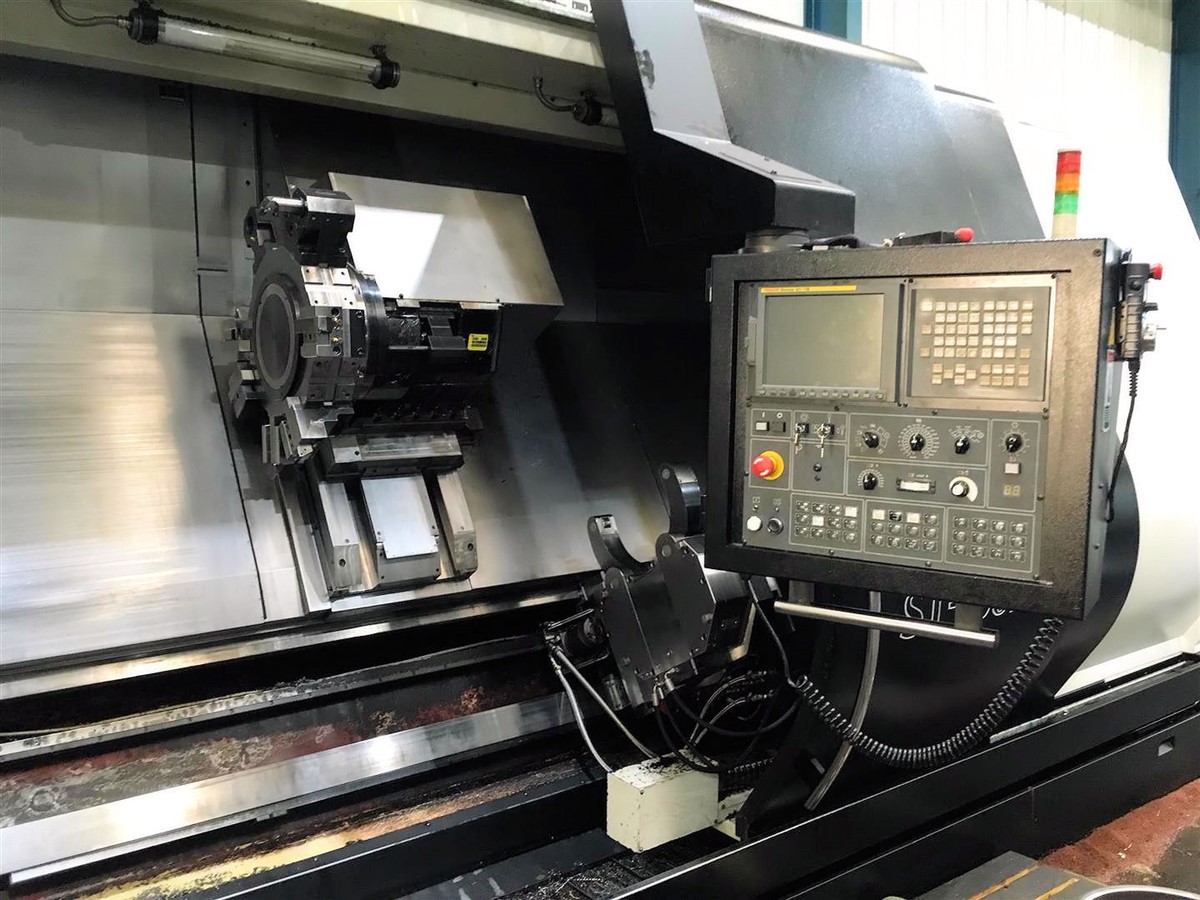

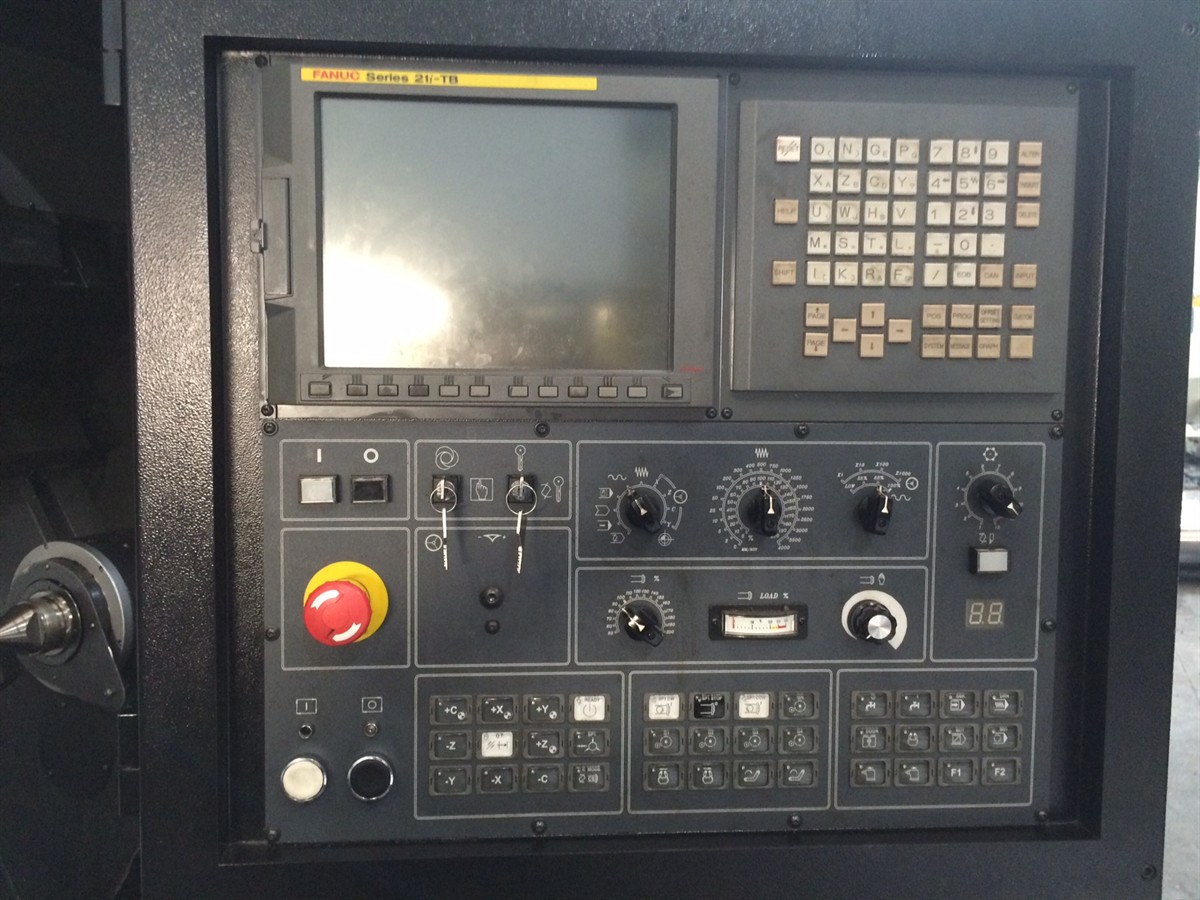

Control:		FANUC 21iTB
Machine Dimensions L x D x H:		8612 x 2504 x 2895mm
Machine Weight:		20100kg
Maximum Cutting Length:		3050mm
Spindle Motor Power:		26kW through 2 Speed Gearbox
Spindle Nose:		A2-11

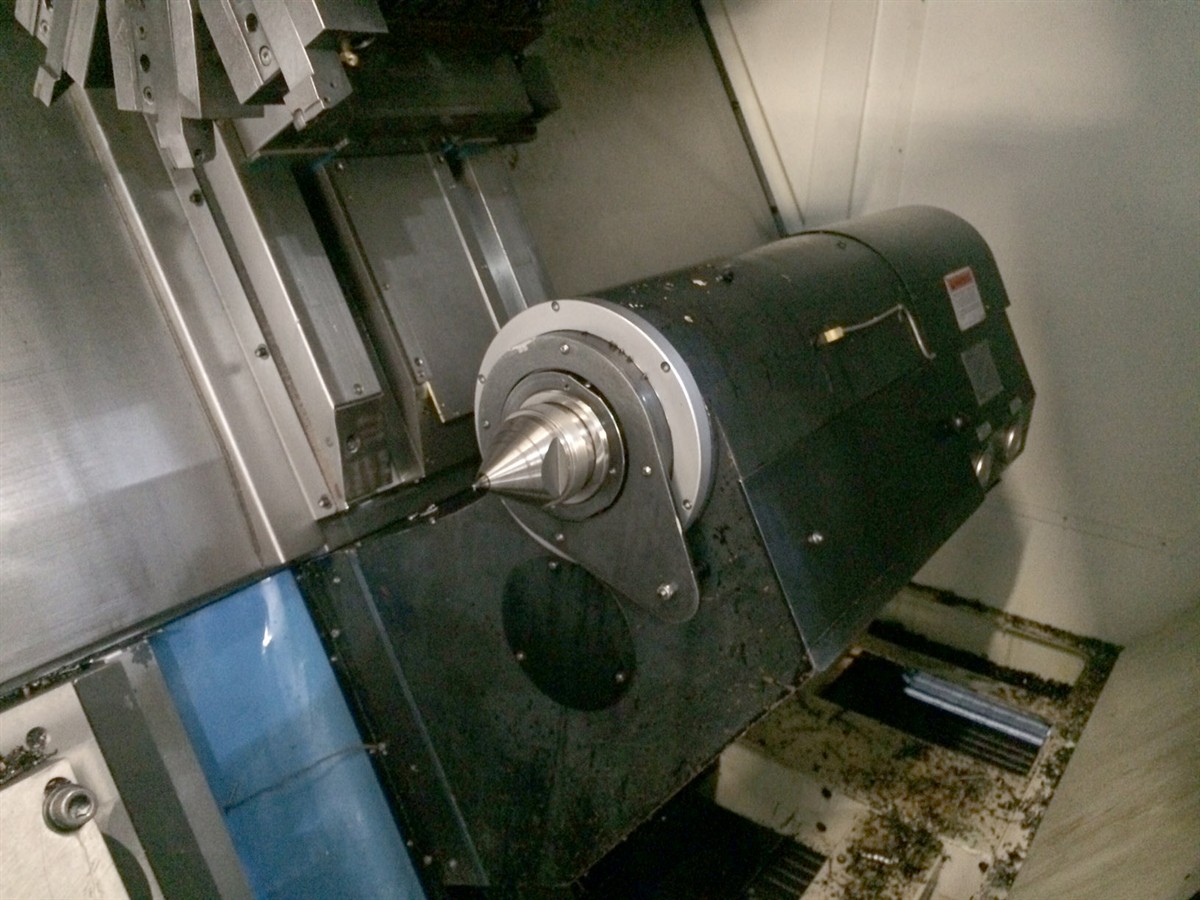

Tailstock Quill Stroke:		150mm
Tailstock Taper:		MT #7

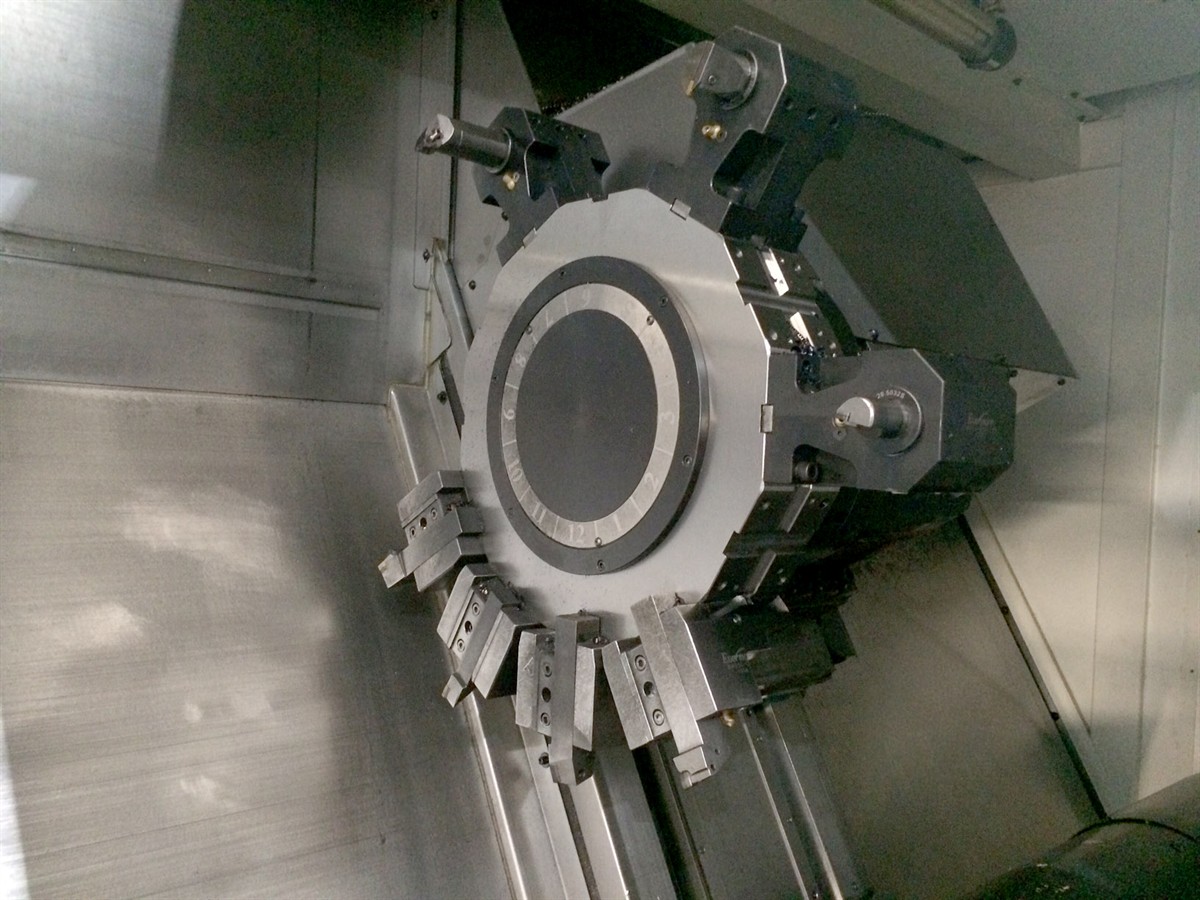

Turret Positions:		12 Station

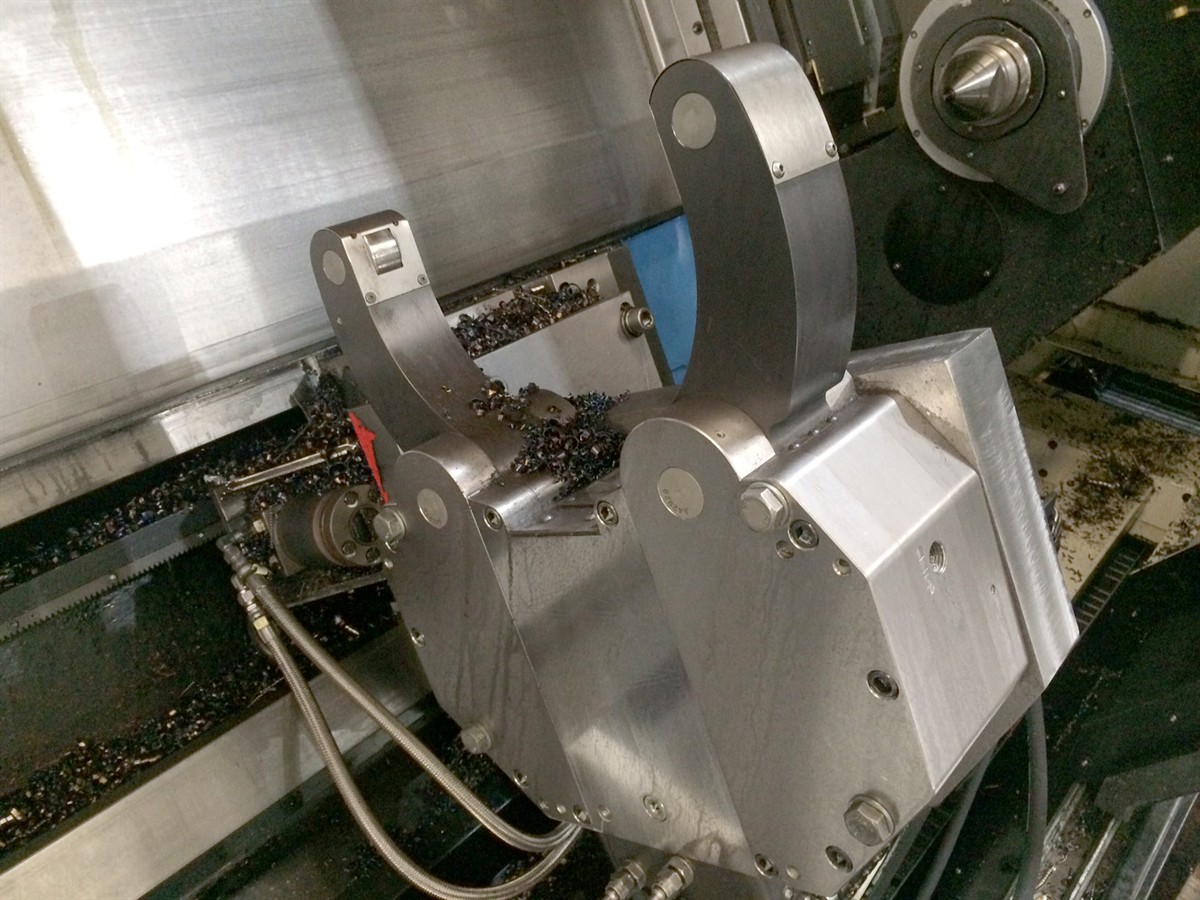

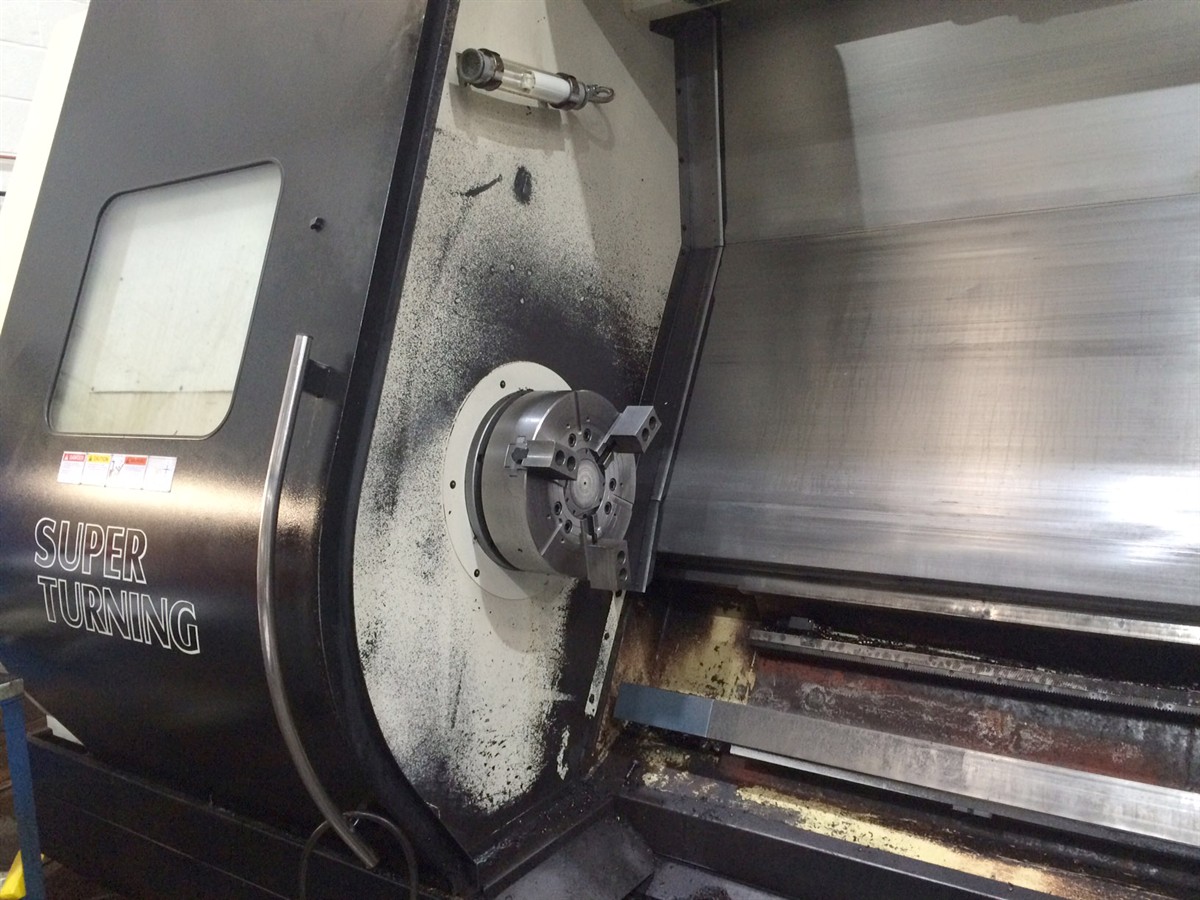

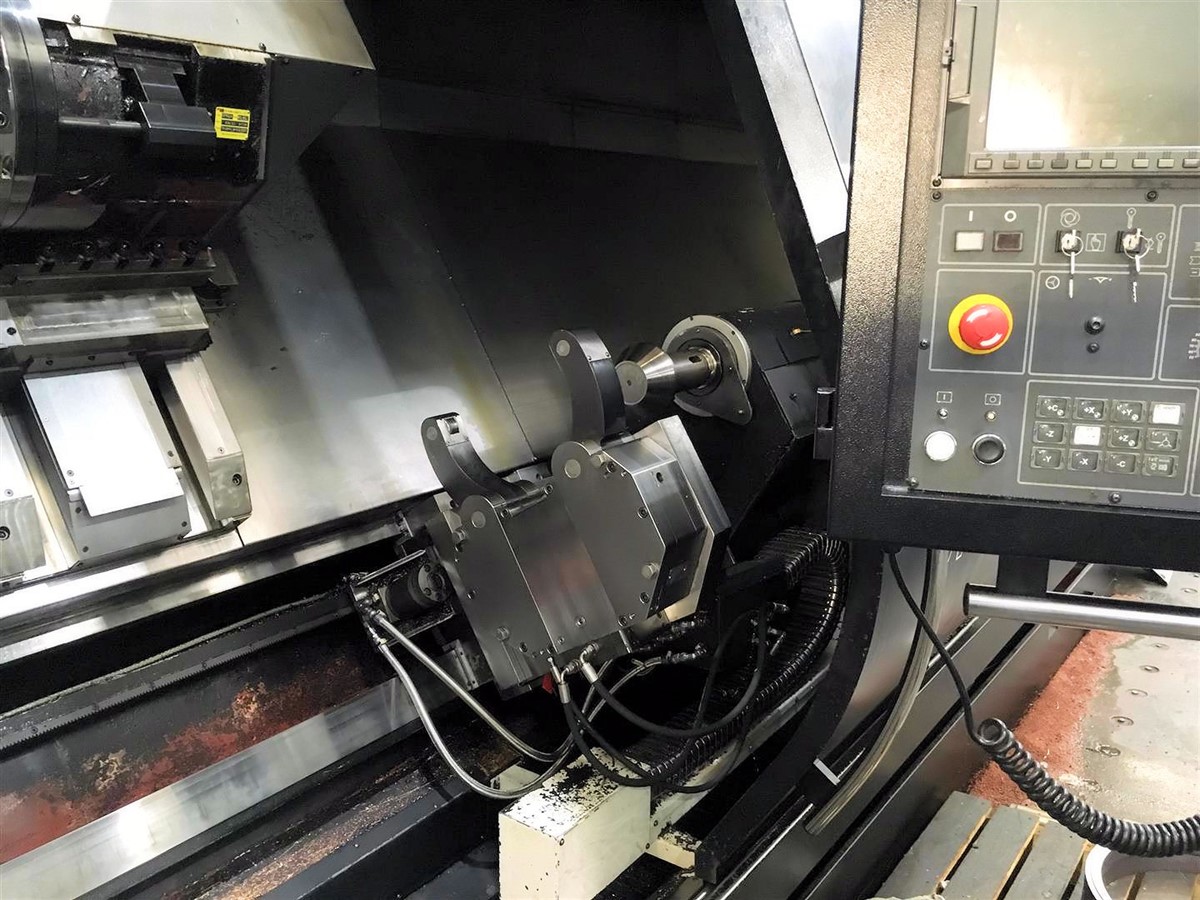

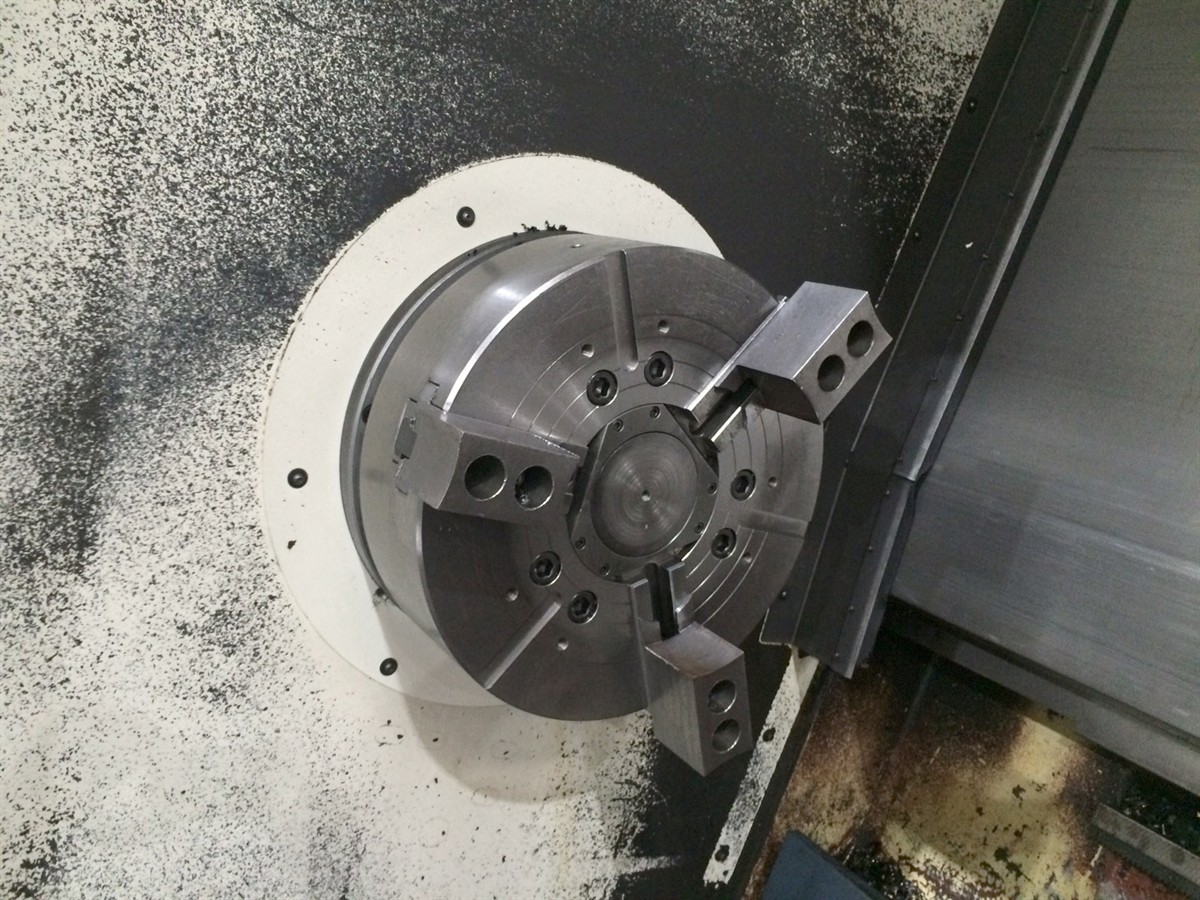

Description:		Swarf conveyor, Coolant, Tailstock, Low Volt Light, 3 Jaw Chuck, Gearbox, Hydraulic Power Work Steady
