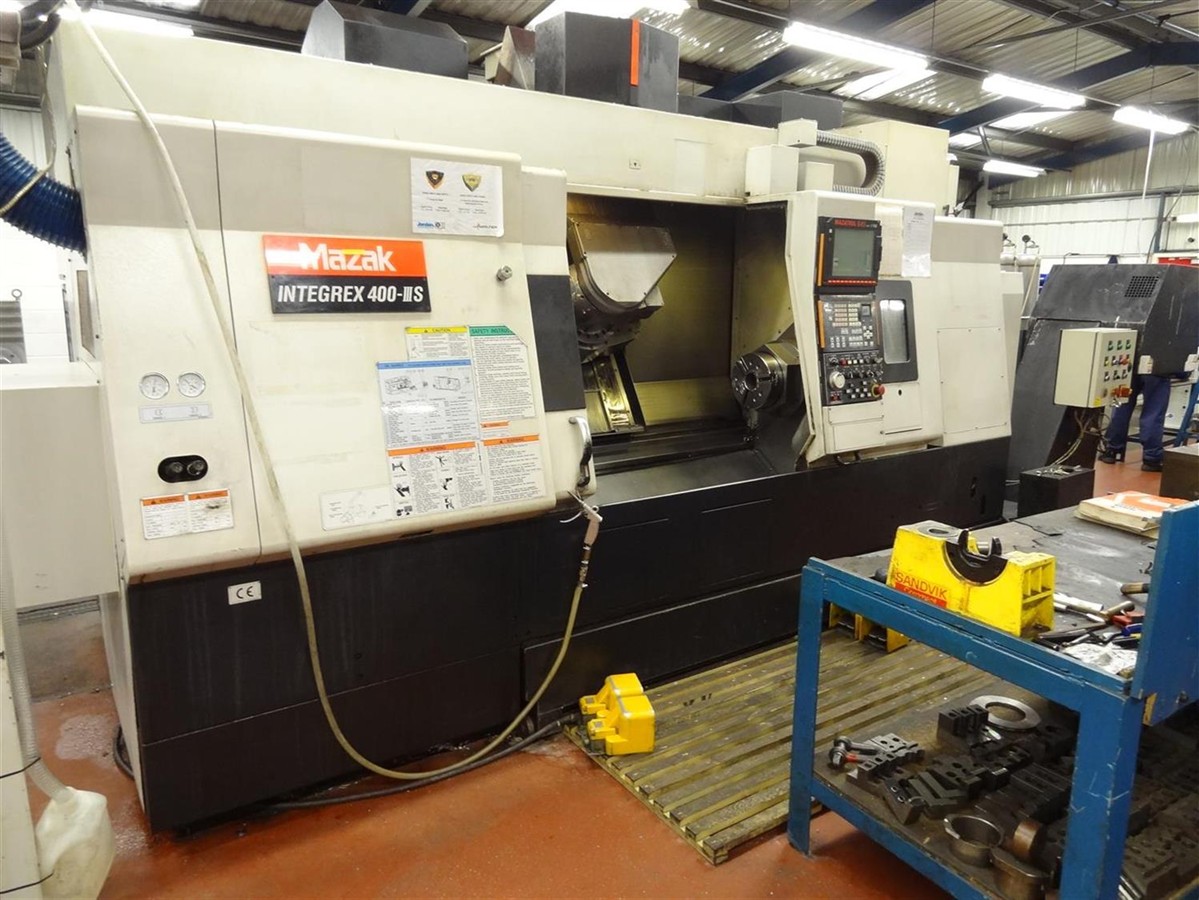

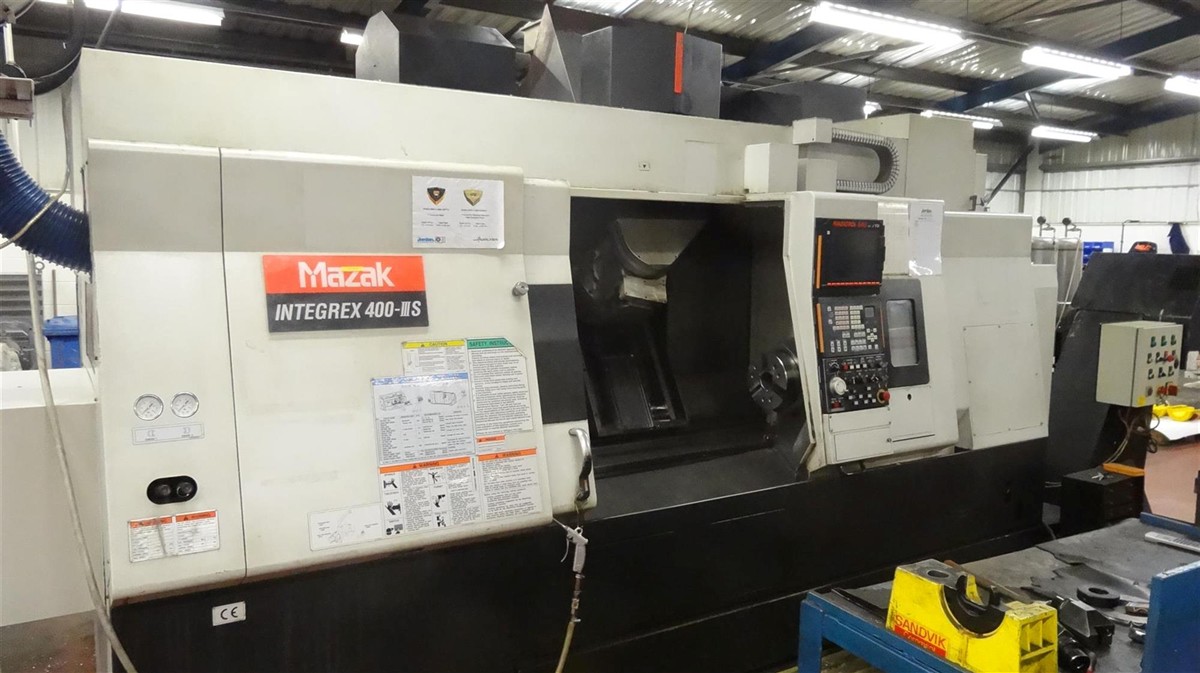

MAZAK Integrex 400-IIIS

MAZAK Integrex 400-IIIS

£89950.00



Year:		2004
Make:		MAZAK
Model:		Integrex 400-IIIS
Maximum Cutting diameter:		420mm
Spindle Speed:		35-3300rpm
Spindle Motor Power:		30kW
Swing:		850mm

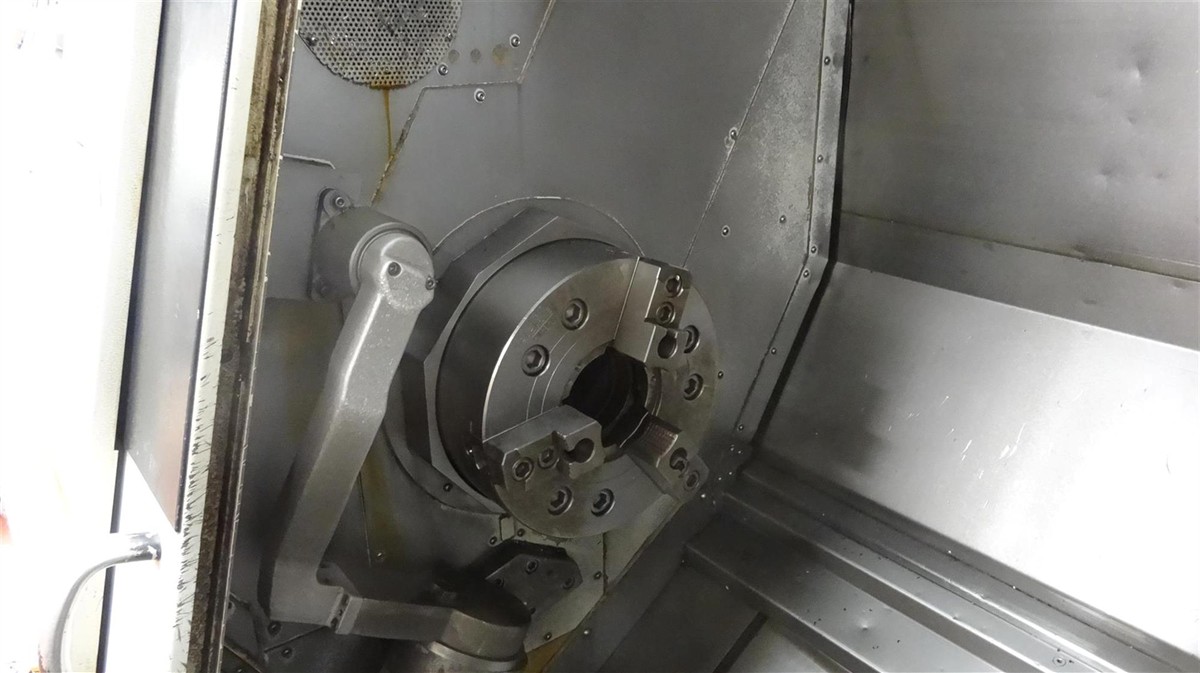

Chuck Size:		12"
Bar Capacity:		105mm

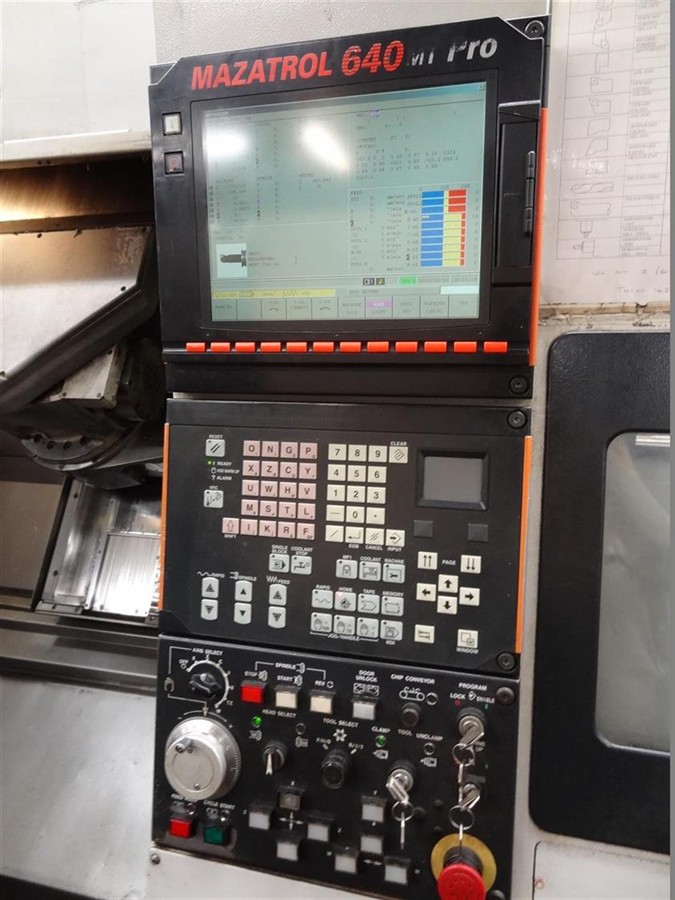

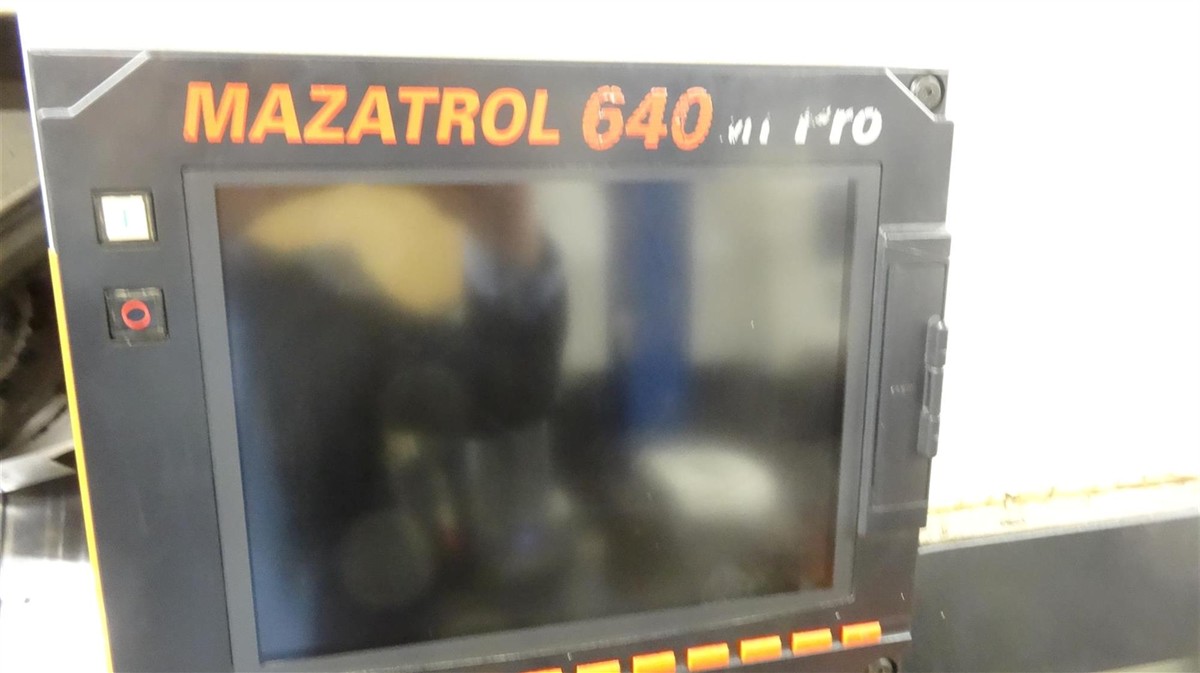

Control:		MAZATROL 640MT Pro
Tool Change Capacity:		40 Station
Y axis Travel:		+/- 70mm

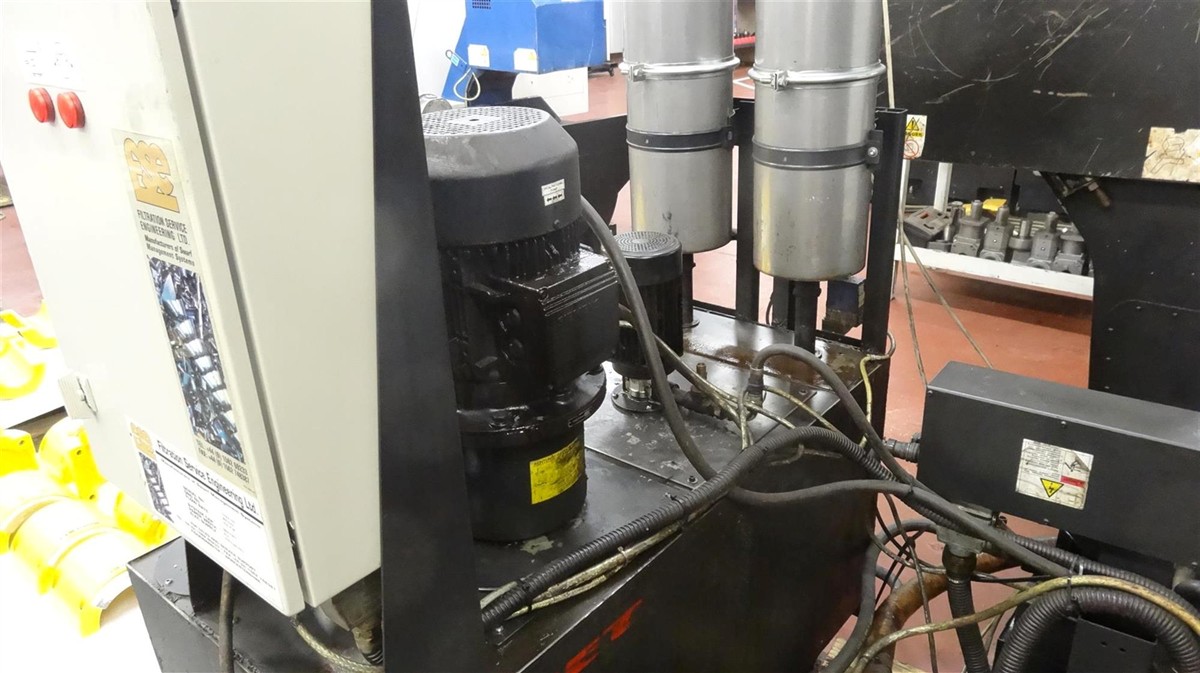

Additional Equipment:		High Pressure Coolant
B axis Movement:		225 degrees
Tool Size:		Capto C6
C axis:		0.001 degree
Milling RPM:		12000rpm (18.5kW)
Maximum Cutting Length:		1524mm

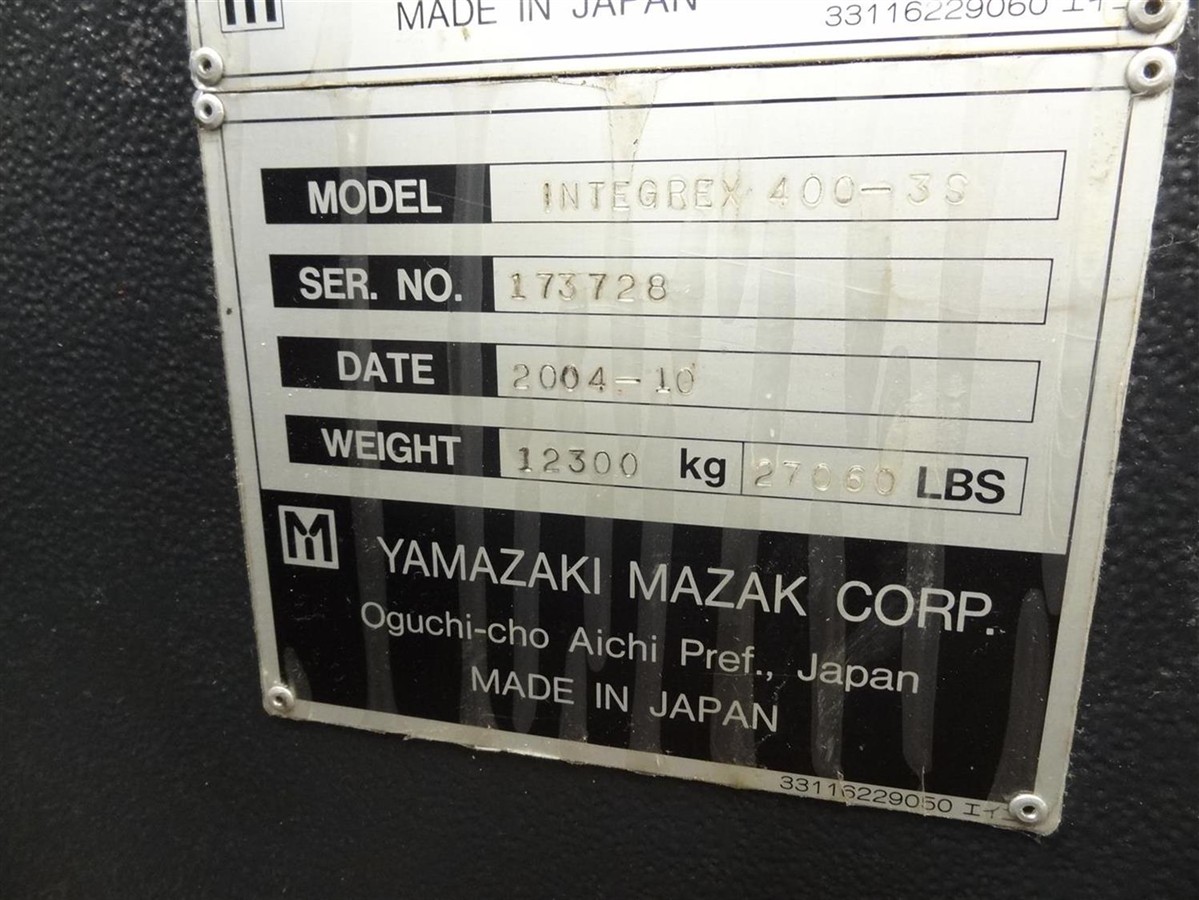

Serial Number:		173728

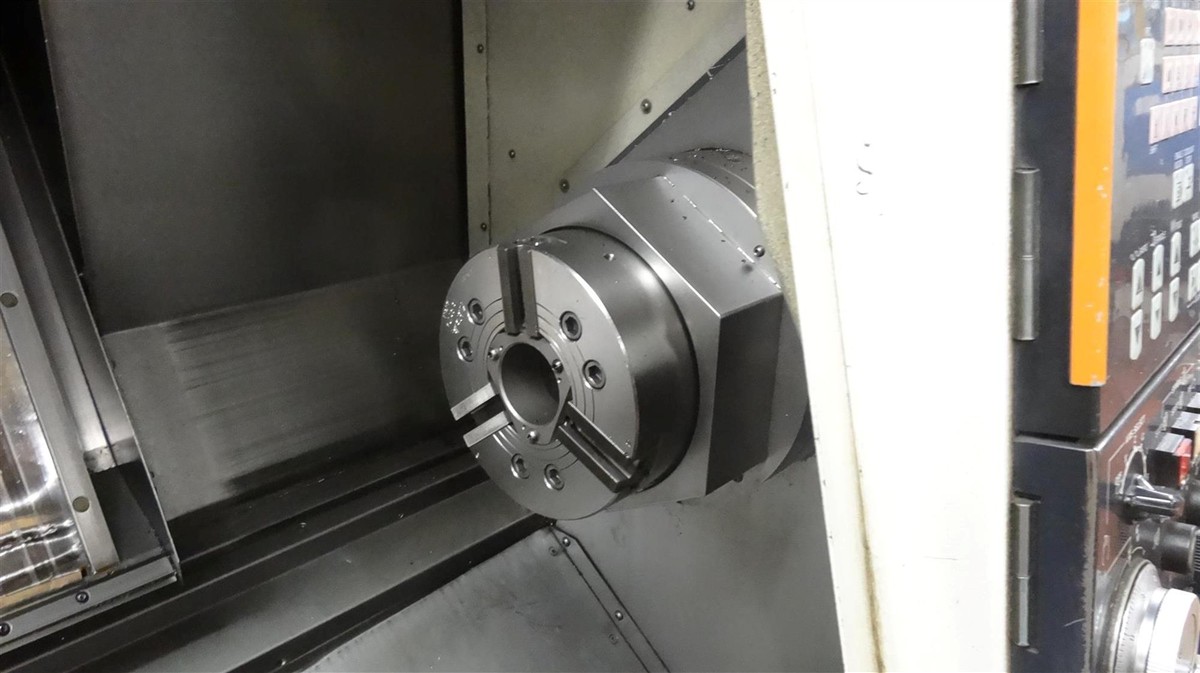

Sub Spindle Bore:		70mm
Description:		C axis & Milling, Sub Spindle, Swarf conveyor, Tool setter, Coolant, Interlocked guards, Low Volt Light, 3 Jaw Chuck, Manuals, B axis
