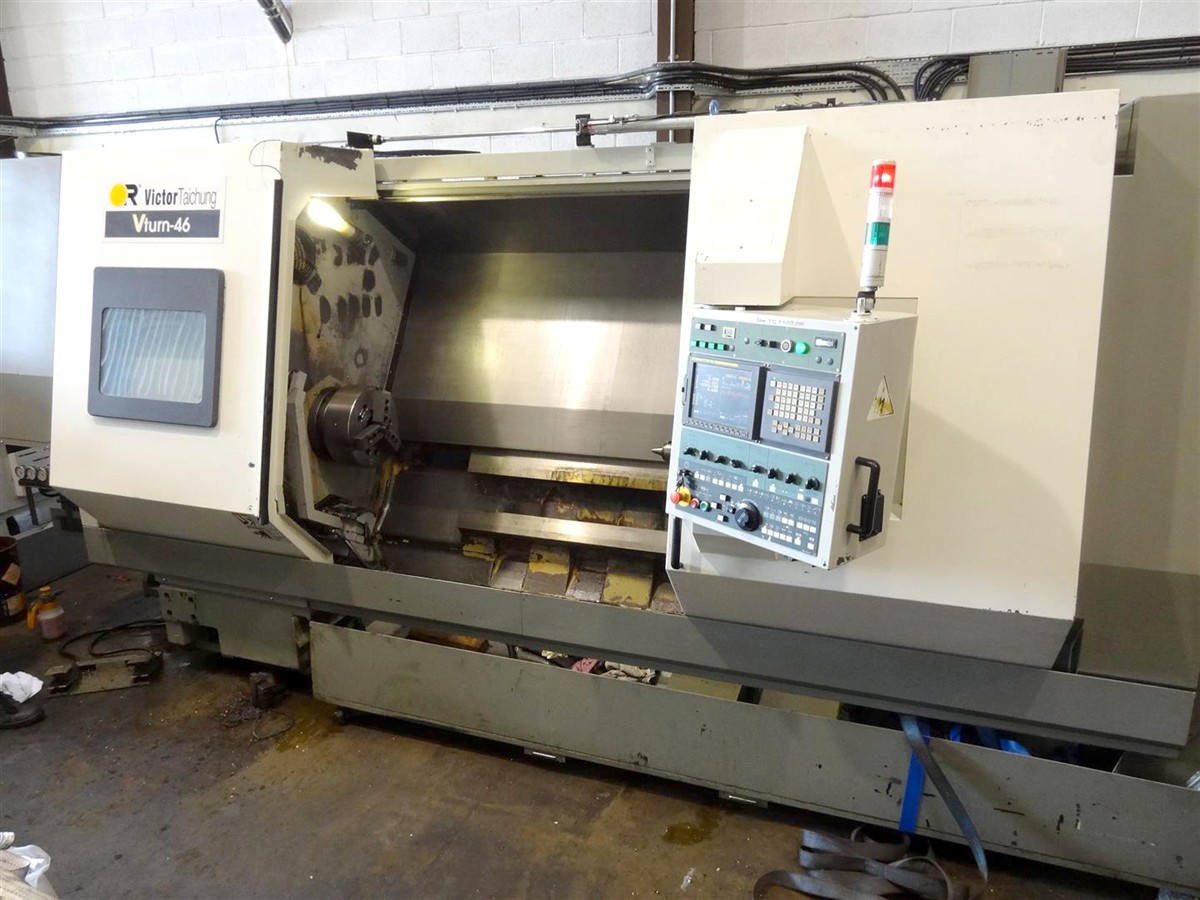

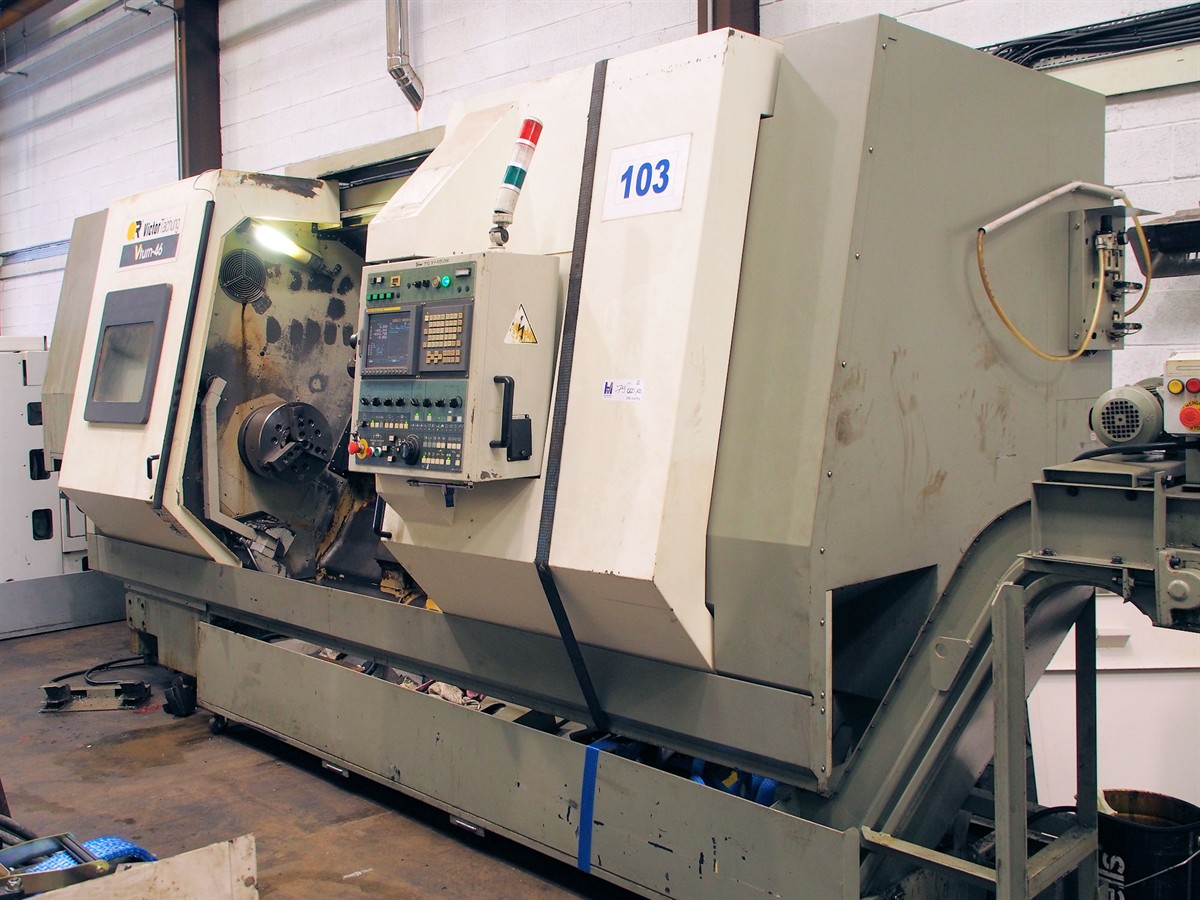

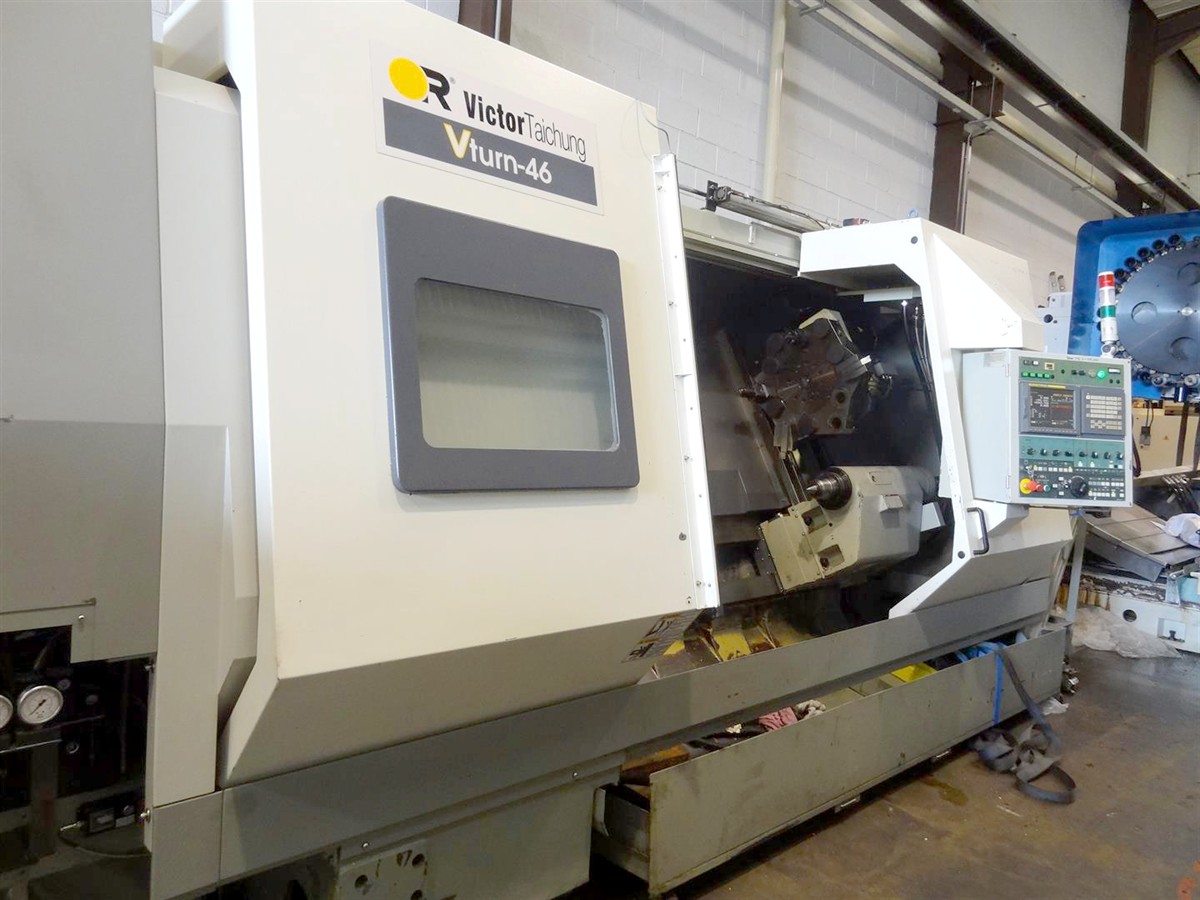

Victor Vturn 46 with C axis

Victor Vturn 46 with C axis

£59950.00



Year:		2008
Make:		Victor
Model:		Vturn 46
Maximum Cutting diameter:		730mm
Machine Weight:		13500kg
Machine Dimensions L x D x H:		6200 x 2500 x 2500mm
Spindle Speed:		1500rpm
Spindle Motor Power:		37kW
Rapid Feedrates:		X x Z : 12 x 15m/minute
Swing:		820mm

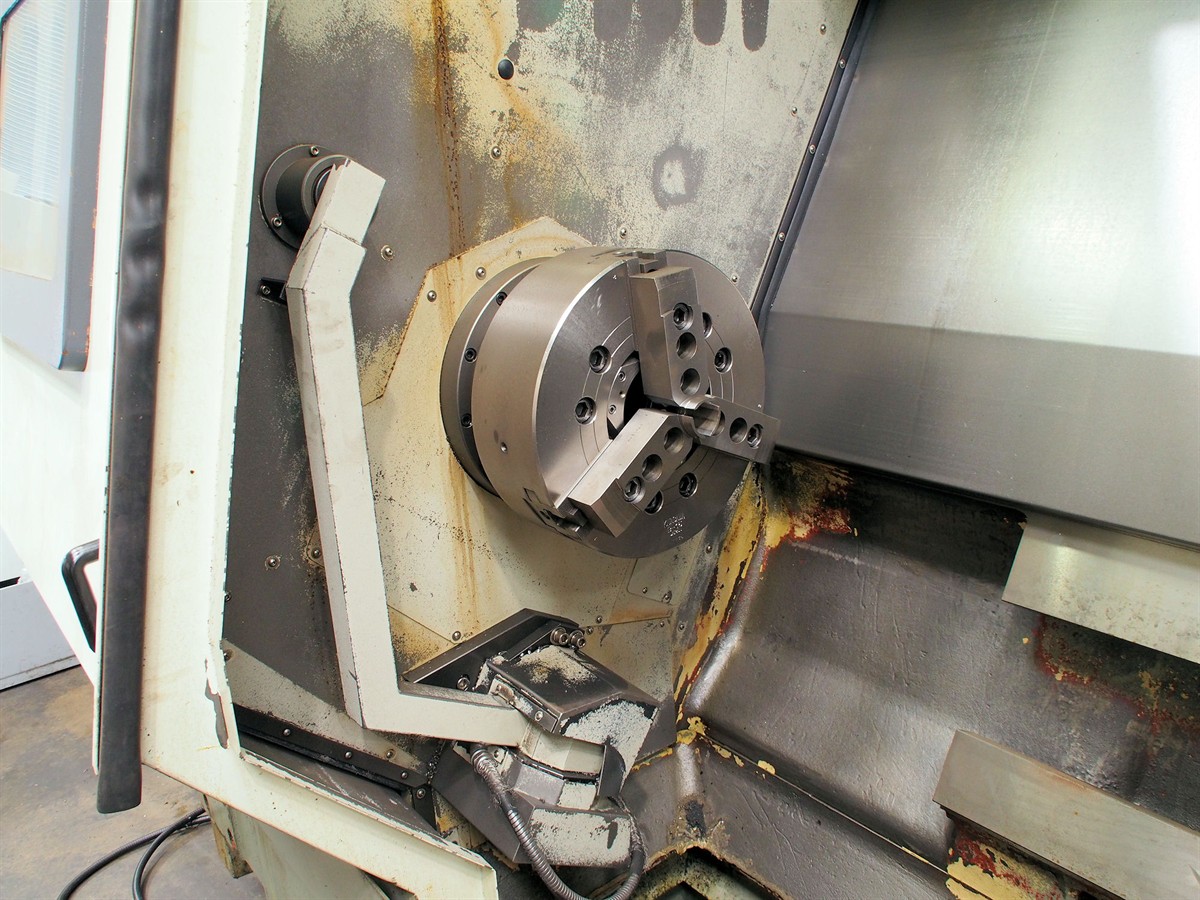

Chuck Size:		15"
Bar Capacity:		110mm

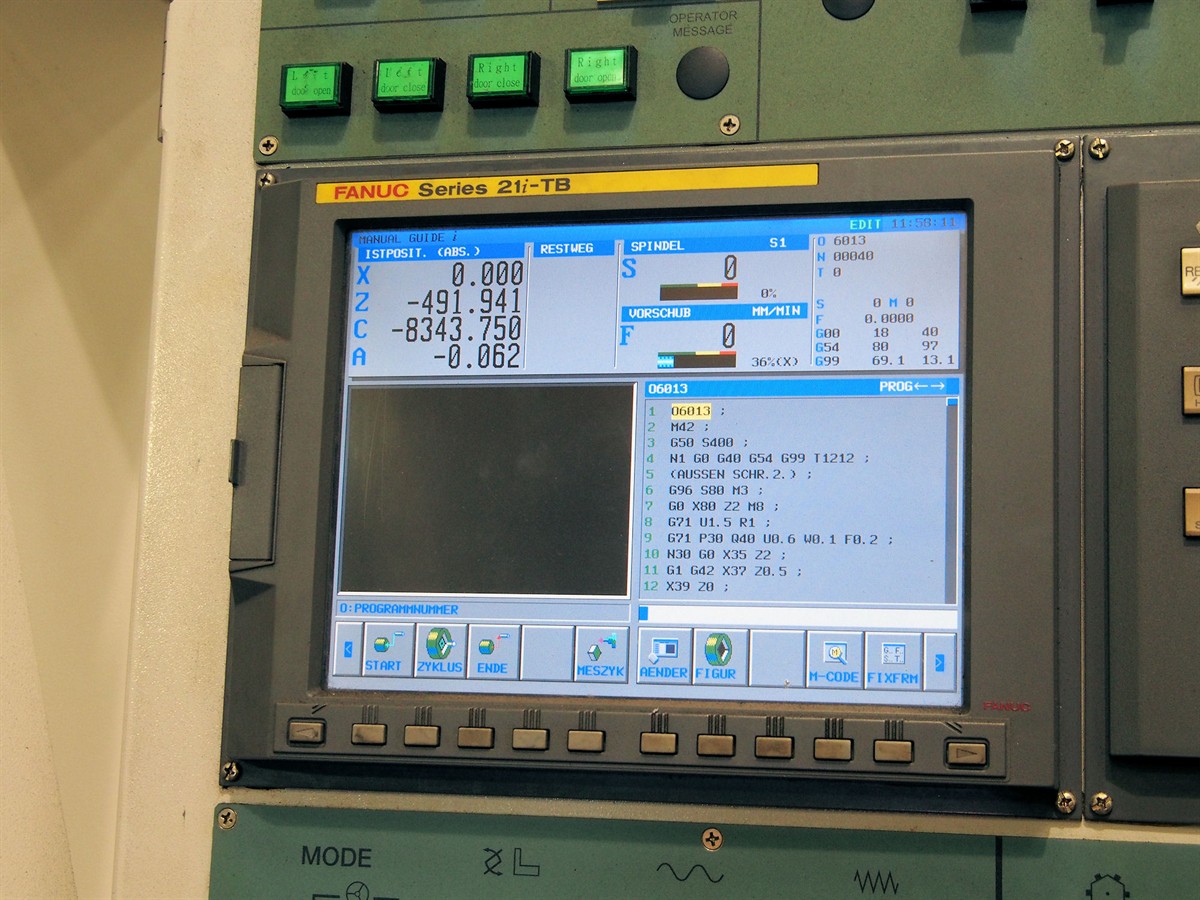

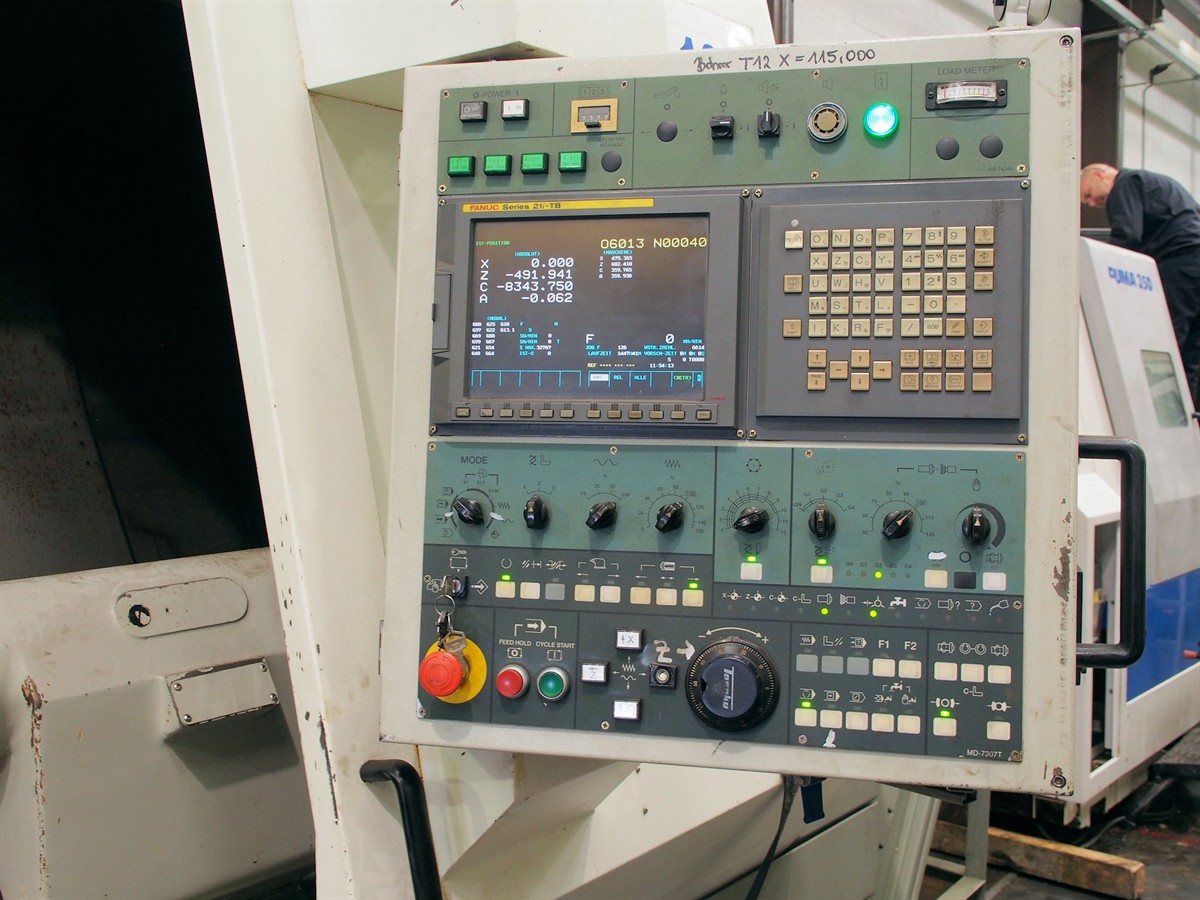

Control:		FANUC 21iTB with manual iGuide
Distance Between Centres:		1750mm
Tailstock Taper:		MT #5
Swing Over Carriage:		520mm
Spindle Nose:		A2-11
C axis:		0.001 degree

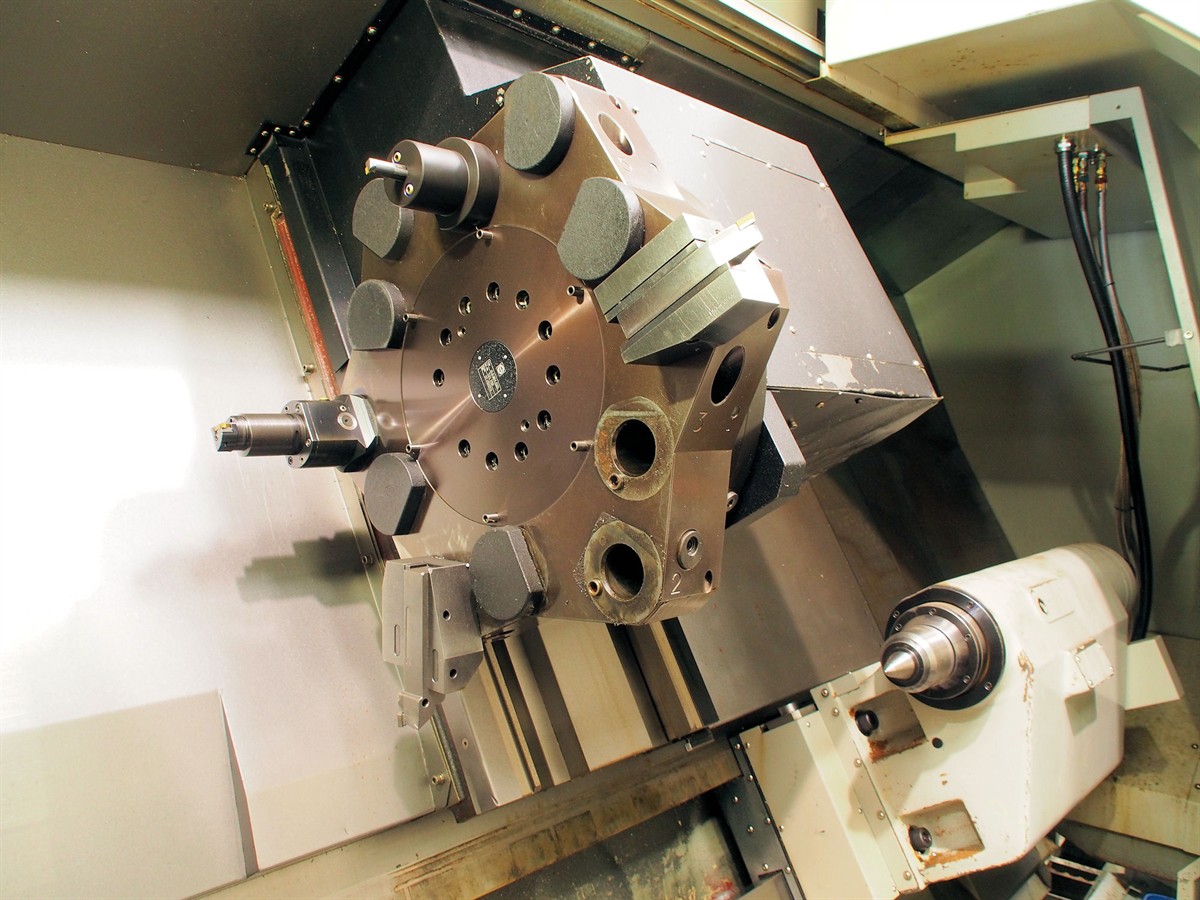

Turret Positions:		12 Station
Milling RPM:		2500rpm (7kW)
Tooling Configuration:		VDI50

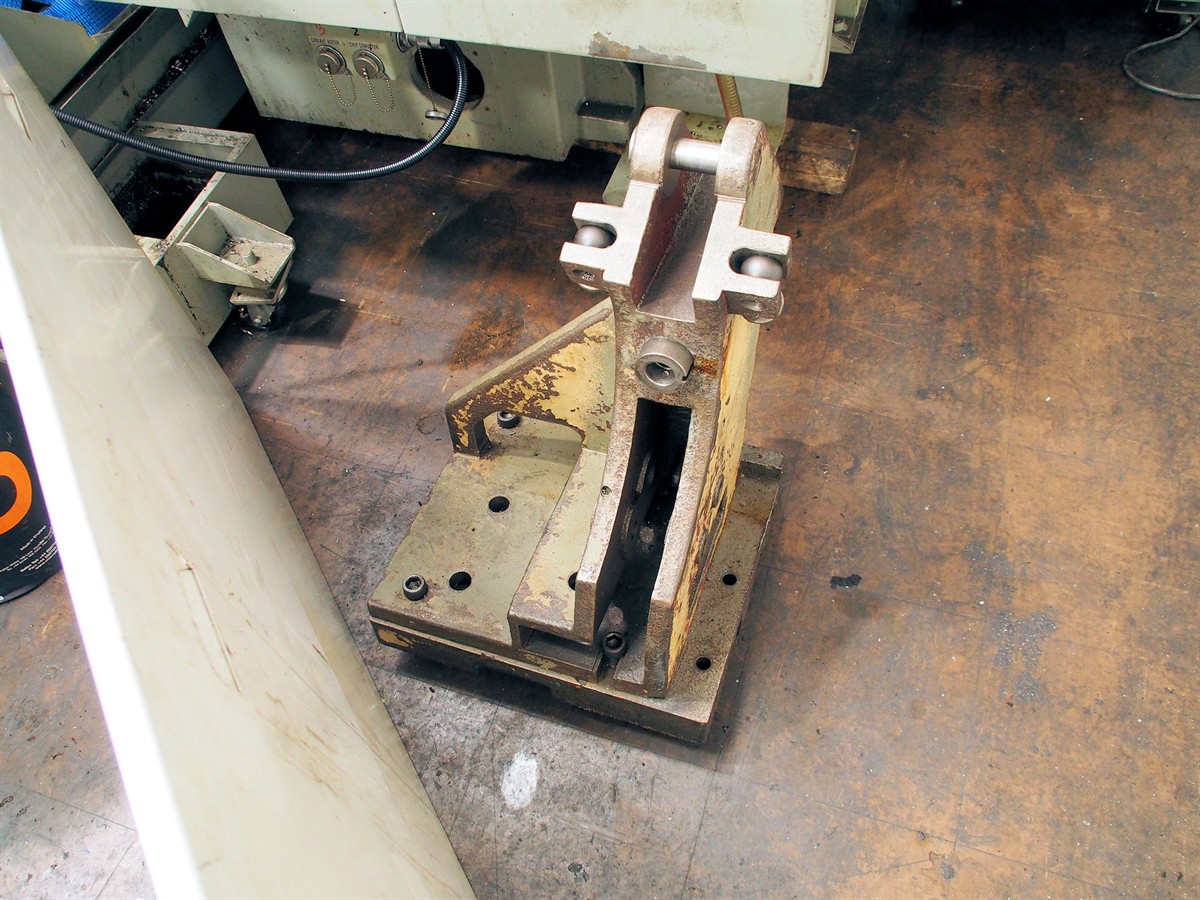

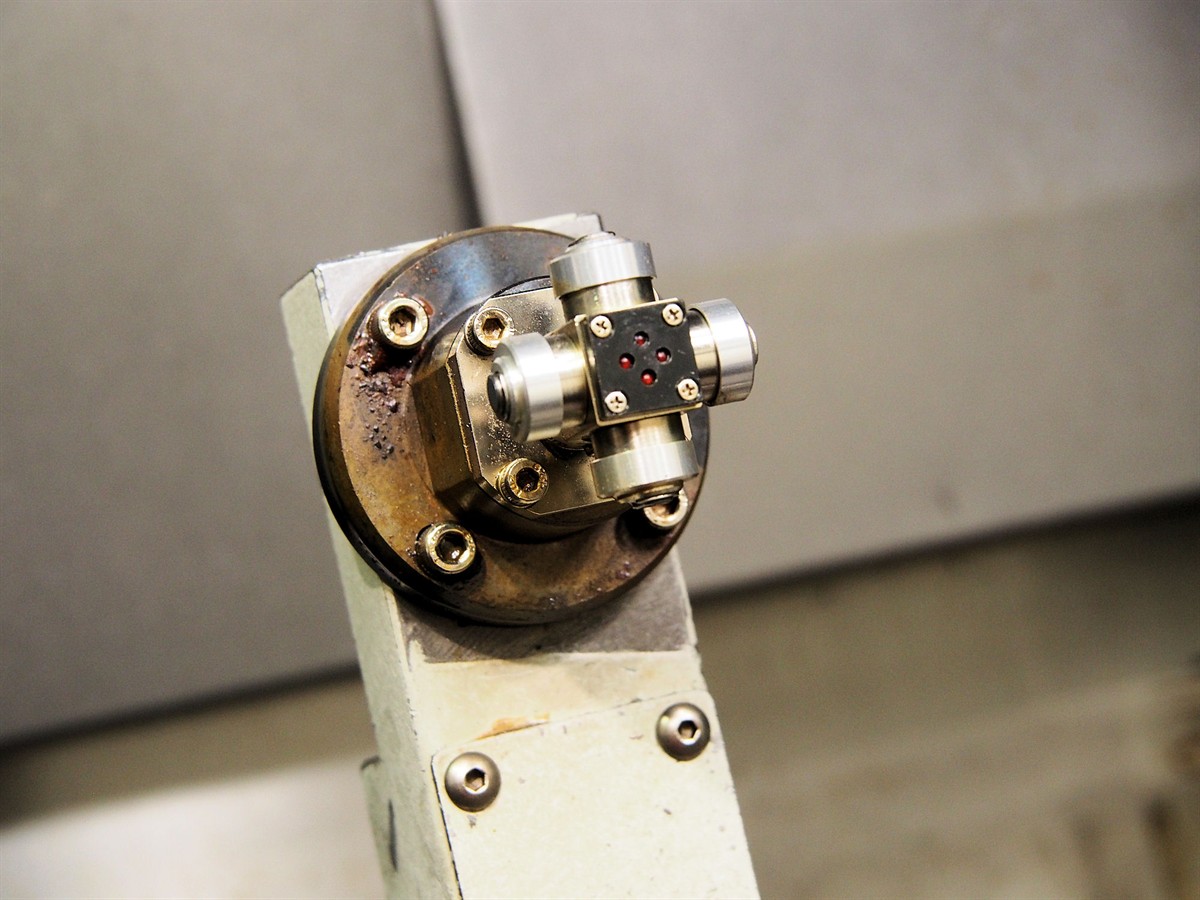

Description:		C axis & Milling, Tool setter, Coolant, Tailstock, Interlocked guards, Low Volt Light, 3 Jaw Chuck, Fixed Steady, Gearbox, Manuals, Swarf Conveyor
